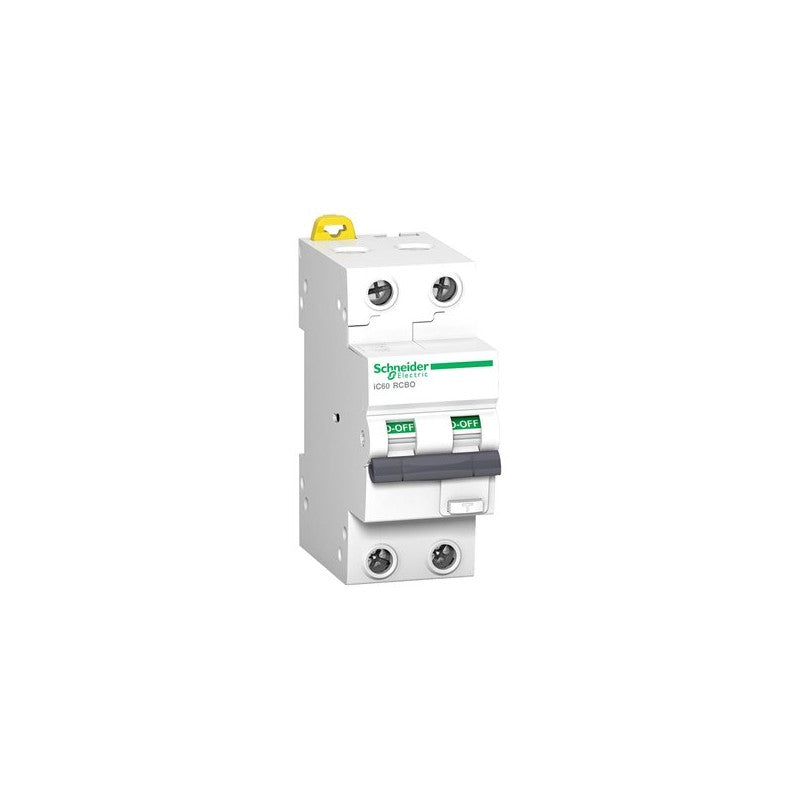

The Schneider Electric Acti9 iC60 RCBO is a 2-pole residual current circuit breaker with overcurrent protection, designed for reliable circuit protection in demanding industrial environments. This unit integrates the functions of a circuit breaker and a residual current device (RCD) into a single compact form factor, simplifying installation and panel space. It is engineered to provide essential safety against electric shock and fire hazards caused by earth faults.

Technical details

• Series: Acti9 iC60
• Type: Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
• Number of Poles: 2
• Rated Current (In): 20 A
• Trip Curve: C Curve (designed for inductive loads with moderate inrush currents)
• Breaking Capacity (Icn): 10000 A at 230/400V (IEC/EN 60898-1)
• Breaking Capacity (Icu): 15 kA at 230/400V (IEC/EN 60947-2)
• Residual Current Sensitivity (IΔn): 30 mA
• Residual Current Type: Type A (sensitive to AC and pulsating DC residual currents)

Applications & compatibility

This RCBO is suitable for use in distribution boards for residential, commercial, and light industrial applications. It provides essential protection for circuits in control panels, machinery, and lighting systems where both overcurrent and earth leakage protection are required. Its Type A sensitivity makes it appropriate for circuits that may experience pulsating DC fault currents, common in electronic equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9D17220 or contact our technical team for cross-reference assistance with compatible Acti9 components.
