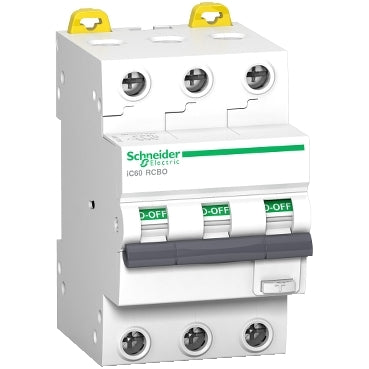

The Schneider Electric Acti9 iC60 RCBO is a 3-pole residual current circuit breaker with overcurrent protection, designed for robust electrical safety in commercial and industrial environments. This unit integrates the functions of a circuit breaker and a residual current device (RCD) into a single compact form factor, simplifying installation and panel space. Its C curve tripping characteristic makes it suitable for protecting circuits with moderate inrush currents, such as lighting or socket outlets.

Technical details

• Series: Acti9 iC60
• Type: Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
• Number of Poles: 3P
• Rated Current: 16 A
• Tripping Curve: C Curve
• Breaking Capacity: 10000A / 15kA (IEC 60898-1)
• Residual Current Sensitivity: 30 mA
• Residual Current Type: Type A (detects AC and pulsating DC residual currents)

Applications & compatibility

This RCBO is commonly employed in distribution boards for protecting circuits in residential, commercial, and light industrial applications. It provides essential protection against electric shock, fire hazards due to earth faults, and overloads or short circuits. Its compatibility extends to standard DIN rail mounting systems found in most electrical panels.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9D17316 or contact our technical team for cross-reference assistance with compatible Acti9 components.
