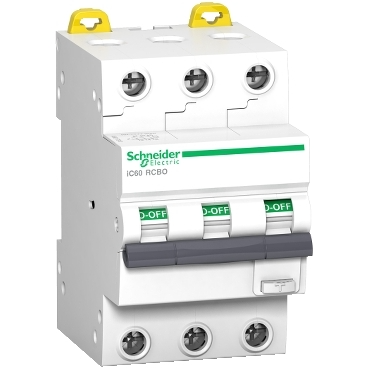

The Schneider Electric Acti9 iC60 RCBO (Residual Current Breaker with Overcurrent protection) is a 3-pole device designed for comprehensive circuit protection. This unit integrates residual current protection with overcurrent protection, offering enhanced safety for personnel and equipment in demanding industrial environments. It is part of the Acti9 series, known for its reliability and advanced protection features.

Technical details

• Series: Acti9 iC60
• Type: RCBO (Residual Current Breaker with Overcurrent protection)
• Number of Poles: 3P
• Rated Current: 32 A
• Trip Curve: C Curve (suitable for loads with moderate inrush currents)
• Short-circuit Breaking Capacity: 10000A / 15kA
• Residual Current Sensitivity: 30 mA
• Residual Current Type: Type A (detects AC and pulsating DC residual currents)

Applications & compatibility

This RCBO is commonly employed in industrial control panels, motor control centers, and distribution boards where both overcurrent and earth leakage protection are critical. It is suitable for protecting circuits in machinery such as conveyor systems, pumps, fans, and HVAC equipment, ensuring compliance with safety regulations and preventing electrical hazards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9D17332 or contact our technical team for cross-reference assistance with compatible Acti9 components.
