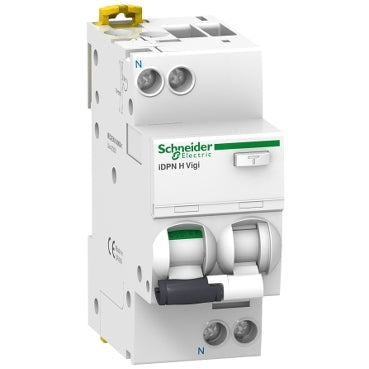

The Schneider Electric Acti9 iDPN H Vigi RCBO is a crucial component for electrical protection in demanding industrial environments. This specific unit, identified by the part number A9D38606, integrates residual current and overcurrent protection into a single device. It is designed for single-phase plus neutral circuits, offering comprehensive safety for machinery and personnel.

Technical details

• Series: Acti9 iDPN H Vigi
• Type: Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
• Poles: 1 Pole + Neutral (1P+N)
• Rated Current: 6A
• Trip Curve: C Curve (suitable for loads with moderate inrush currents)
• Breaking Capacity: 10000A (10kA)
• Residual Current Sensitivity: 30mA
• Residual Current Type: Type A-SI (sensitive to AC and pulsating DC residual currents, with enhanced immunity)

Applications & compatibility

This RCBO is commonly deployed in control panels, motor circuits, and power distribution systems within manufacturing facilities. It provides essential protection against electric shock, fire hazards, and equipment damage caused by overloads and short circuits. Its Type A-SI designation makes it particularly suitable for applications where sensitive electronics or variable frequency drives are present, minimizing nuisance tripping.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9D38606 or contact our technical team for cross-reference assistance with compatible Acti9 series components.
