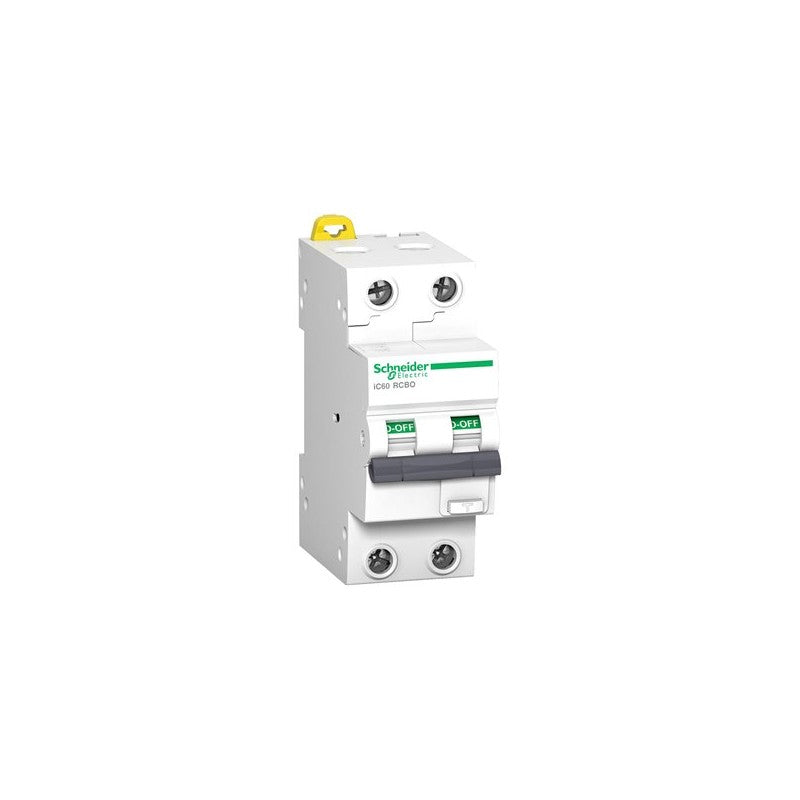

The Schneider Electric Acti9 iC60 RCBO is a 2-pole residual current circuit breaker with overcurrent protection, designed for reliable circuit protection in demanding industrial environments. This unit integrates the functions of a miniature circuit breaker (MCB) and a residual current device (RCD) into a single compact form factor, simplifying installation and panel space. It is engineered to provide essential safety against electric shock and fire hazards caused by earth faults.

Technical details

• Series: Acti9 iC60
• Type: RCBO (Residual Current Breaker with Overcurrent Protection)
• Number of Poles: 2
• Rated Current: 16 A
• Trip Curve: B Curve (typically for inductive loads with low inrush currents)
• Short-Circuit Breaking Capacity: 10000 A (10 kA) / 15 kA (IEC 60898-1 / IEC 60947-2)
• Residual Current Sensitivity: 30 mA
• Residual Current Type: SI Type (Selective and Instantaneous)

Applications & compatibility

This RCBO is suitable for protecting circuits in commercial and industrial installations, including control panels, motor circuits, and lighting systems where both overcurrent and earth leakage protection are required. Its B curve characteristic makes it appropriate for circuits with low starting currents, such as resistive loads or certain types of electronic equipment. Compatibility is ensured with the Acti9 system for modular installations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9D47216 or contact our technical team for cross-reference assistance with compatible Acti9 components.
