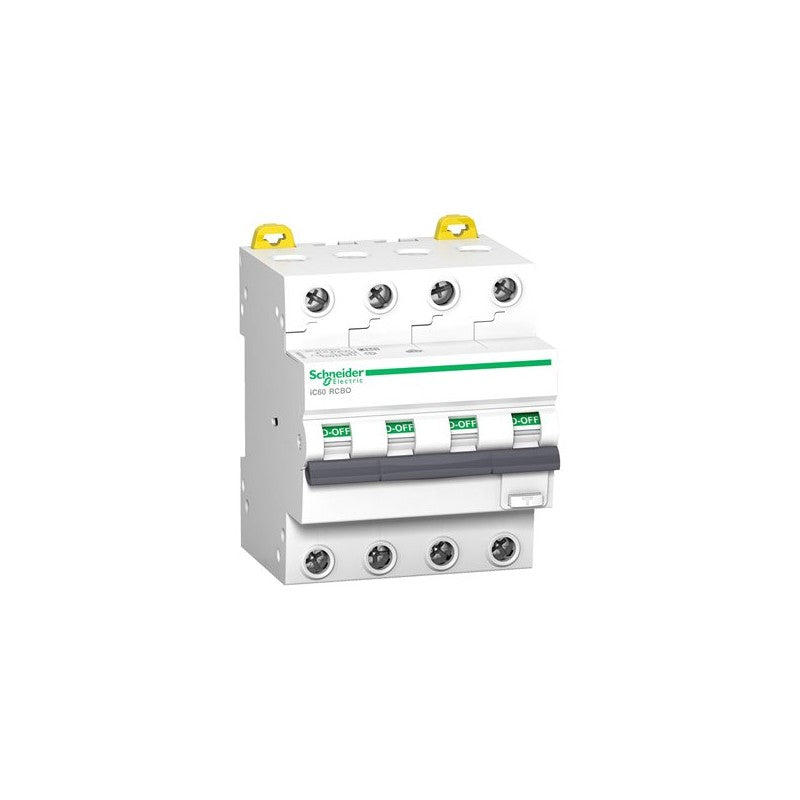

The Schneider Electric Acti9 iC60 RCBO is a 4-pole residual current circuit breaker with overcurrent protection, designed for robust electrical safety in demanding industrial environments. This unit integrates the functions of a circuit breaker and a residual current device, offering comprehensive protection against overload, short circuits, and earth leakage faults. It is commonly specified for distribution boards and control panels in manufacturing facilities, data centers, and commercial buildings.

Technical details

• Series: Acti9 iC60
• Type: Residual Current Breaker with Overcurrent Protection (RCBO)
• Number of Poles: 4P
• Rated Current: 16 A
• Trip Curve: C Curve (designed for inductive loads, tripping between 5 and 10 times the rated current)
• Breaking Capacity: 6000A / 6kA (IEC 60898-1 and IEC 60947-2 standards)
• Residual Current Sensitivity: 30 mA (Type A, sensitive to AC and pulsating DC residual currents)
• Voltage Rating: Verify against manufacturer datasheet for specific voltage class (e.g., 230/400V AC)

Applications & compatibility

This Acti9 iC60 RCBO is suitable for protecting circuits in various industrial applications, including motor control centers, lighting circuits, and general power distribution. Its Type A sensitivity makes it effective for applications where pulsating DC fault currents may occur, such as those found in some electronic power supplies or variable speed drives. It is designed to meet stringent safety standards in sectors like food and beverage processing, water treatment, and building automation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9D67416 or contact our technical team for cross-reference assistance with compatible Acti9 components.
