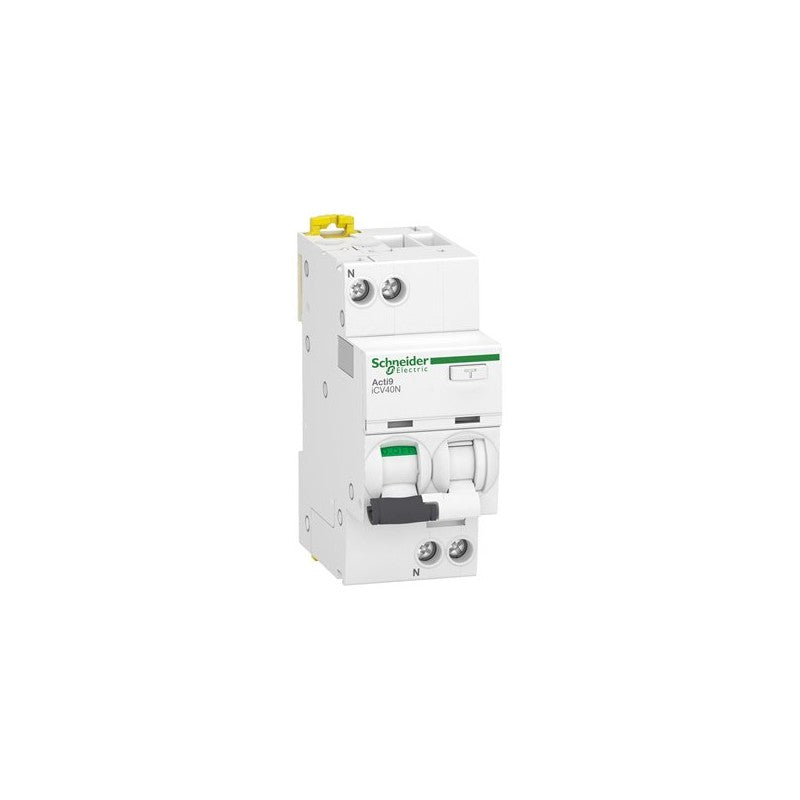

The Schneider Electric Acti9 iCV40 is a residual current breaker with overcurrent protection (RCBO) designed for reliable circuit protection in demanding industrial environments. This 1-pole plus neutral (1P+N) device integrates residual current and overcurrent protection into a single unit, simplifying installation and panel space. It is commonly specified for applications requiring robust protection against earth faults and short circuits, such as in control panels for machinery and building electrical systems.

Technical details

• Series: Acti9 iCV40
• Configuration: 1 Pole + Neutral (1P+N)
• Rated Current: 20 A
• Trip Curve: C Curve (suitable for inductive loads with moderate inrush currents)
• Breaking Capacity: 6000 A (IEC 60898-1)
• Residual Current Sensitivity: 30 mA (AC type, sensitive to sinusoidal AC residual currents)
• Voltage Rating: Not explicitly specified in provided information; verify against manufacturer datasheet.
• Frequency: Not explicitly specified in provided information; verify against manufacturer datasheet.
• Terminal Type: Not explicitly specified in provided information; verify against manufacturer datasheet.

Applications & compatibility

This RCBO is suitable for use in a wide range of industrial and commercial applications, including motor control circuits, lighting circuits, and general power distribution. It is compatible with standard DIN rail mounting systems, facilitating integration into existing electrical panels and switchboards found in manufacturing facilities, data centers, and infrastructure projects.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9DE3620 or contact our technical team for cross-reference assistance with compatible Acti9 series components.
