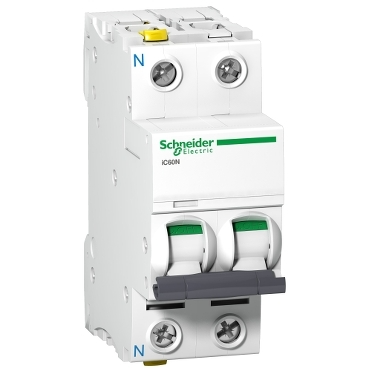

The Schneider Electric Acti9 iC60N Miniature Circuit Breaker (MCB) is engineered for reliable overcurrent protection in single-phase plus neutral applications. This 1P+N device is designed to safeguard electrical circuits against short circuits and overloads, commonly found in building distribution panels and control cabinets.

Technical details

• Series: Acti9 iC60N
• Configuration: 1 Pole + Neutral (1P+N)
• Current Rating: 16 Amperes (A)
• Trip Curve: B Curve (typically for resistive loads and sensitive electronics)
• Short-Circuit Breaking Capacity (IEC 60898-1): 6000 Amperes (A)
• Short-Circuit Breaking Capacity (IEC 60947-2): 10 kiloAmperes (kA)
• Termination Type: Double Terminal
• Compliance Standards: IEC 60898-1, IEC 60947-2

Applications & compatibility

This MCB is suitable for use in residential, commercial, and light industrial environments. It is commonly integrated into distribution boards for protecting lighting circuits, socket outlets, and small appliances. The B curve makes it appropriate for circuits where the prospective short-circuit current is relatively low and where sensitive electronic equipment may be present.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9F03616 or contact our technical team for cross-reference assistance with compatible Acti9 components.
