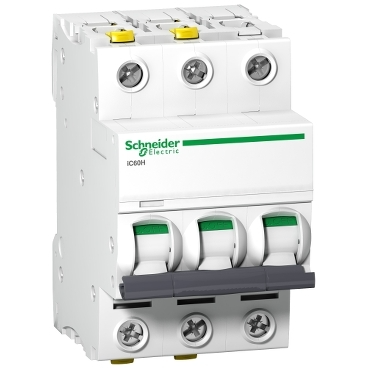

The Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB) is a robust 3-pole device designed for reliable circuit protection in demanding industrial environments. This specific unit, the A9F08363, features a D-curve tripping characteristic, making it suitable for applications with high inrush currents, such as motor control circuits. It offers a breaking capacity of 10,000A according to IEC 60898-1 and 15kA according to IEC 60947-2, ensuring safety and operational continuity.

Technical details

• Series: Acti9 iC60H
• Number of Poles: 3P
• Current Rating: 63A
• Trip Curve: D Curve
• Breaking Capacity (IEC 60898-1): 10,000A
• Breaking Capacity (IEC 60947-2): 15kA
• Termination Type: Double terminal
• Voltage Rating: Verify against manufacturer datasheet for specific application requirements.

Applications & compatibility

This Schneider Electric MCB is commonly deployed in electrical distribution panels for protecting circuits in machinery such as packaging lines, conveyor systems, and HVAC equipment. Its D-curve characteristic makes it particularly well-suited for safeguarding inductive loads where temporary overcurrents are expected during startup. Compatibility extends to various industrial control panels and power distribution systems requiring reliable overcurrent and short-circuit protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9F08363 or contact our technical team for cross-reference assistance with compatible Acti9 series components.
