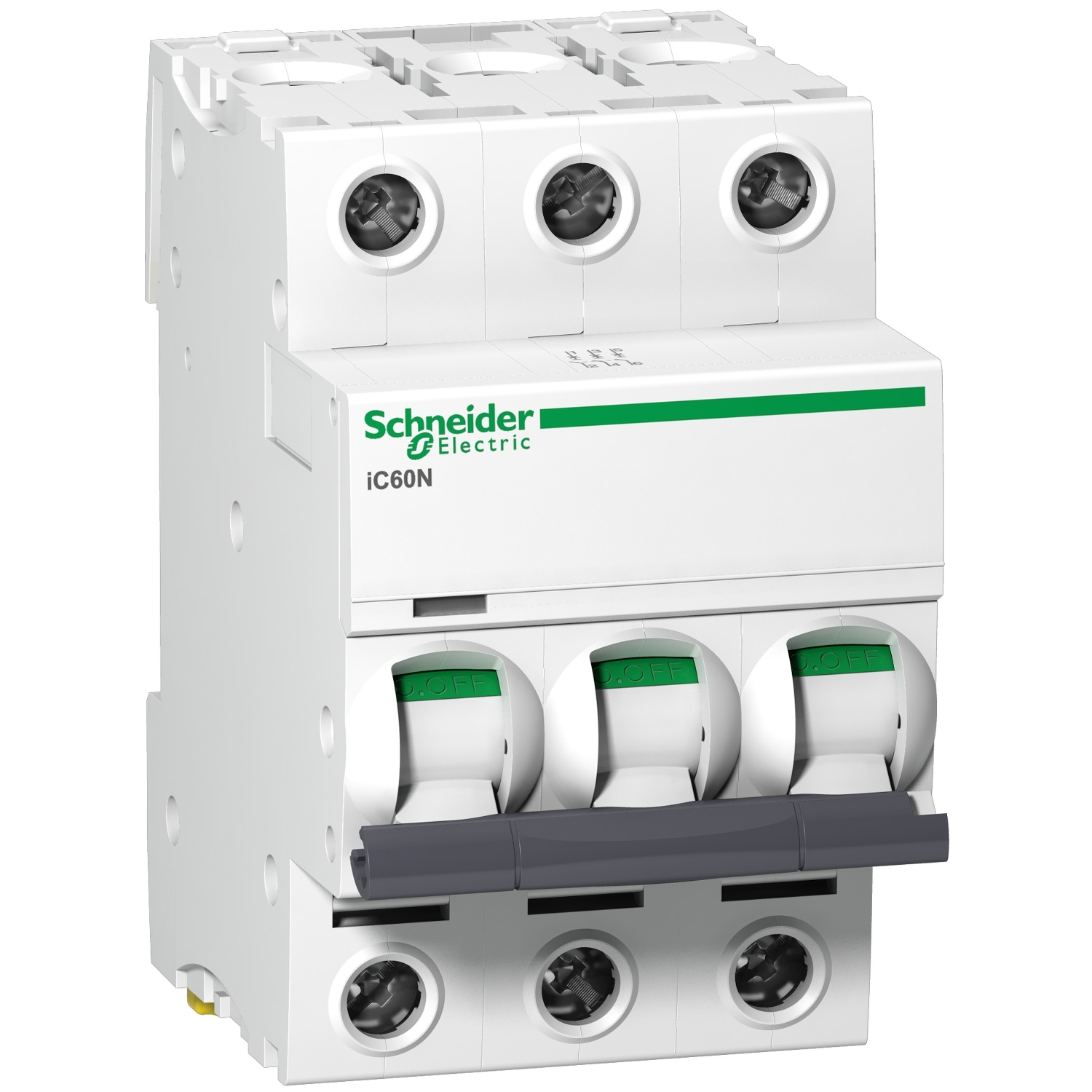

The Schneider Electric Acti9 iC60N DISBO miniature circuit breaker (MCB) is engineered for robust electrical protection in demanding industrial environments. This 3-pole device, designated by the A9F45302 part number, offers a 2A current rating and is designed to safeguard circuits against overloads and short circuits. It is a key component in ensuring the operational integrity of machinery and electrical distribution systems.

Technical details

• Series: Acti9 iC60N DISBO
• Poles: 3
• Current Rating: 2 Amperes (A)
• Trip Curve: D Curve, suitable for high inrush current applications
• Short-Circuit Breaking Capacity (IEC/EN 60898-1): 6000 Amperes (A)
• Short-Circuit Breaking Capacity (IEC/EN 60947-2): 50 kiloAmperes (kA)
• Voltage Rating: While not explicitly stated in the provided information, D-curve MCBs of this type are typically designed for standard industrial AC voltage systems. Buyers should verify the exact voltage rating against the manufacturer's datasheet.
• Interrupting Capacity: High, as indicated by the 50kA rating under IEC/EN 60947-2 standards.

Applications & compatibility

This Schneider Electric MCB is commonly deployed in control panels, motor protection circuits, and distribution boards within manufacturing facilities. Its D-curve characteristic makes it particularly well-suited for applications involving inductive loads, such as motor starters, transformers, and lighting ballasts, where temporary high current surges are expected during startup.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9F45302 or contact our technical team for cross-reference assistance with compatible Acti9 series components.
