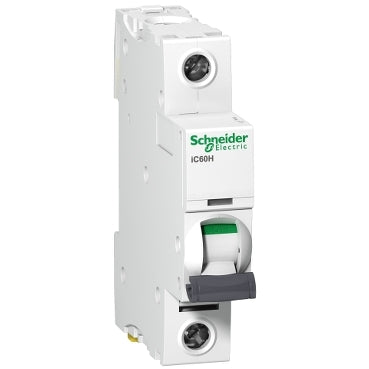

The Schneider Electric Acti9 iC60H miniature circuit breaker is designed for reliable overcurrent protection in electrical distribution systems. This single-pole (1P) device, part of the widely recognized Acti9 series, offers a robust solution for safeguarding circuits against faults and overloads. Its C-curve tripping characteristic makes it suitable for applications where moderate inrush currents are expected, such as lighting circuits or control panels.

Technical details

• Series: Acti9 iC60H
• Number of Poles: 1P (Single Pole)
• Current Rating: 20 Amperes (20A)
• Tripping Curve: Type C
• Voltage Rating: Verify against manufacturer datasheet for specific AC and DC voltage ratings.
• Interrupting Capacity: Verify against manufacturer datasheet for specific breaking capacity (kA).
• Terminal Type: Verify against manufacturer datasheet for specific terminal connection type.
• Mounting Type: DIN rail mount

Applications & compatibility

This circuit breaker is commonly employed in residential, commercial, and light industrial settings for branch circuit protection. It is ideal for use in distribution boards, control cabinets, and panelboards where precise and dependable protection of electrical loads is paramount. Compatibility extends to systems requiring Type C protection characteristics for inductive loads.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9F54120 or contact our technical team for cross-reference assistance with compatible Acti9 components.
