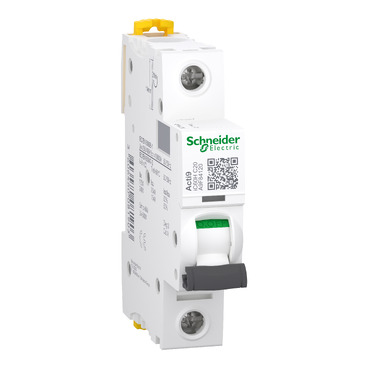

The Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB) is engineered for robust circuit protection in demanding industrial environments. This 1-pole, 20A device features a C curve tripping characteristic, making it suitable for applications requiring protection against overloads and short circuits with a moderate inrush current. Its design adheres to stringent international standards, ensuring reliable performance and safety.

Technical details

• Series: Acti9 iC60H
• Poles: 1
• Current Rating: 20A
• Tripping Curve: C
• Short-Circuit Breaking Capacity (IEC/EN 60898-1): 10000A
• Short-Circuit Breaking Capacity (IEC/EN 60947-2): 15kA
• Voltage Rating: Verify against manufacturer datasheet for specific voltage class compatibility.
• Interrupting Capacity: Rated for 10kA at 230/400V AC according to IEC/EN 60898-1 and 15kA at 400V AC according to IEC/EN 60947-2.

Applications & compatibility

This MCB is commonly deployed in electrical distribution panels for commercial and industrial facilities, protecting circuits in lighting systems, motor control circuits with moderate starting currents, and general power distribution. It is designed for compatibility with standard DIN rail mounting systems, facilitating integration into existing electrical infrastructure.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9F84120 or contact our technical team for cross-reference assistance with compatible Acti9 components.
