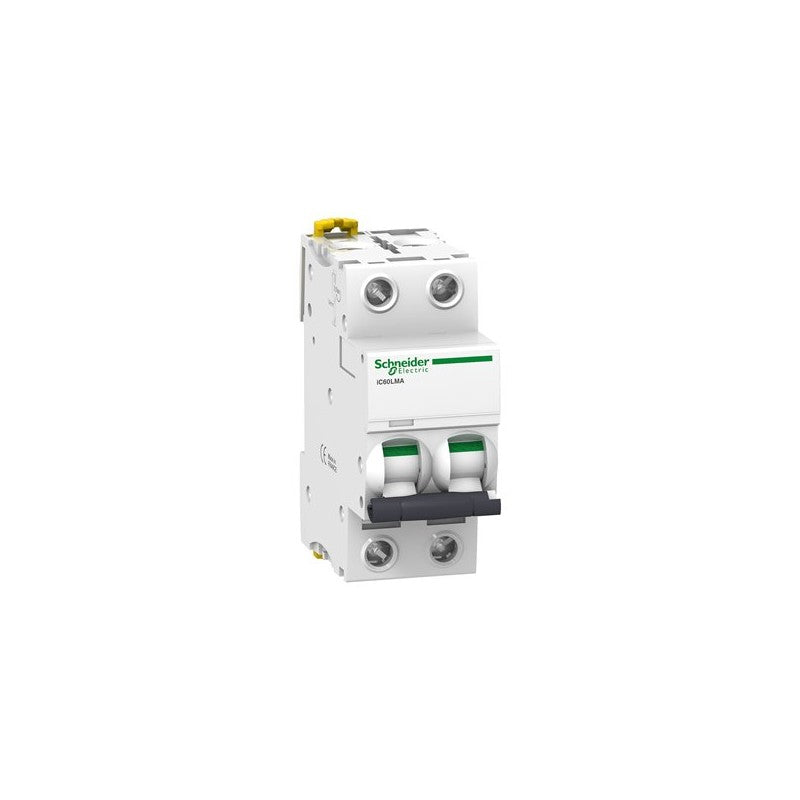

The Schneider Electric A9F90282 is a miniature circuit breaker from the iC60L series, designed for reliable overcurrent protection in electrical systems. This 2-pole breaker features a 12.5A current rating and is configured with an MA trip curve, indicating magnetic-only protection suitable for specific motor control applications where rapid response to short circuits is paramount.

Technical details

• Series: iC60L
• Poles: 2
• Current Rating: 12.5 A
• Trip Curve: MA (Magnetic-only)
• Interrupting Capacity: Verify against manufacturer datasheet for specific rating.
• Voltage Rating: Verify against manufacturer datasheet for specific rating.
• Terminal Type: Verify against manufacturer datasheet for specific type (e.g., screw, cage clamp).
• Dimensions: Verify against manufacturer datasheet for precise physical dimensions.

Applications & compatibility

This iC60L miniature circuit breaker is commonly employed in industrial control panels, motor starter circuits, and distribution boards where precise magnetic trip characteristics are required. Its MA curve makes it suitable for protecting equipment sensitive to instantaneous overcurrents, such as motors and transformers, in applications like conveyor systems, pump controls, and HVAC units.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9F90282 or contact our technical team for cross-reference assistance with compatible iC60L series components.
