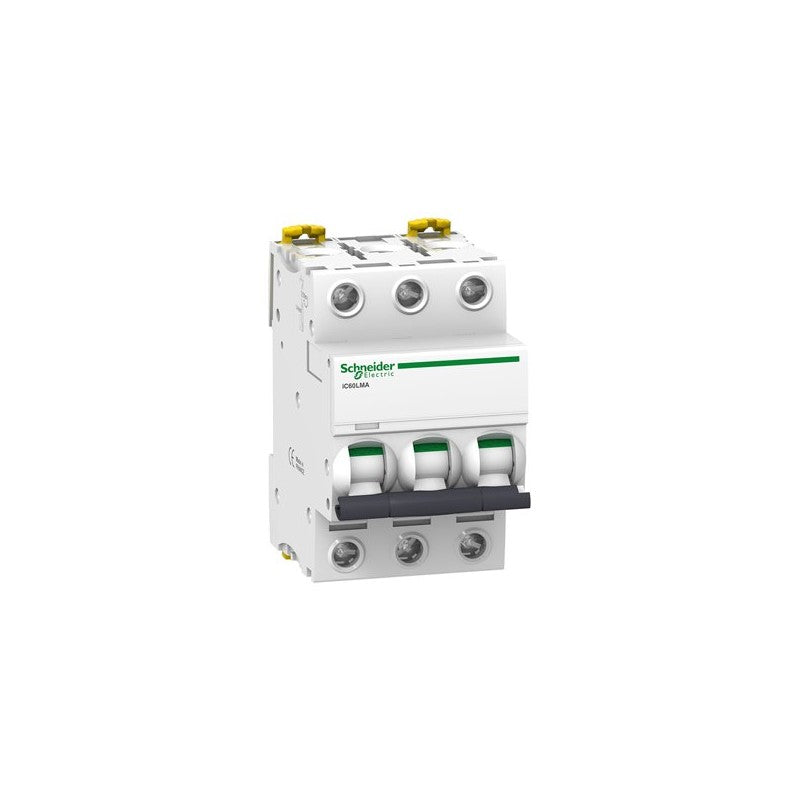

Schneider Electric's iC60L miniature circuit breaker, identified by the part number A9F90316, is a 3-pole device designed for reliable overcurrent protection. This specific model features a 16A current rating and is configured with an MA trip curve, indicating magnetic-only protection suitable for motor circuit applications where rapid fault clearing is paramount. Its robust construction ensures dependable operation in demanding industrial environments.

Technical details

• Series: iC60L
• Number of Poles: 3
• Current Rating: 16A
• Trip Curve: MA (Magnetic-only)
• Type: Miniature Circuit Breaker
• Intended Use: Overcurrent and short-circuit protection
• Voltage Rating: Verify against manufacturer datasheet for specific application requirements.
• Interrupting Capacity: Verify against manufacturer datasheet for specific application requirements.

Applications & compatibility

The A9F90316 is commonly employed in industrial control panels and electrical distribution systems requiring precise motor protection. Its MA trip curve makes it particularly suitable for safeguarding motors in applications such as conveyor systems, pumps, fans, and machine tools where high inrush currents are expected during startup.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9F90316 or contact our technical team for cross-reference assistance with compatible Schneider Electric circuit protection components.
