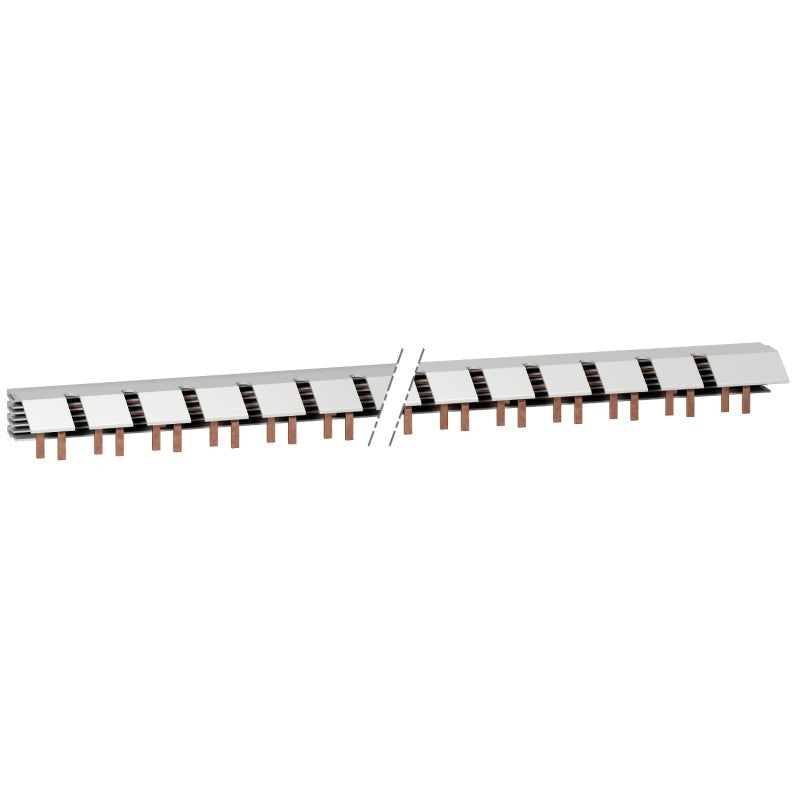

The Schneider Electric Acti9 comb busbar, model A9N21036, is designed for efficient power distribution within electrical panels. This balanced 3-phase plus neutral busbar facilitates simplified wiring for multiple circuit breakers and other modular devices. Its 9 mm pitch ensures compact installation, making it suitable for space-constrained control cabinets commonly found in machine building and building automation systems.

Technical details

• Series: Acti9
• Configuration: 3-Phase + Neutral (3L+N) balanced comb busbar
• Auxiliary Contacts: Equipped with auxiliary contact provisions
• Module Pitch: 9 mm
• Number of Modules: Supports up to 48 modules
• Current Rating: 80 Amperes (A)
• Connection Type: Busbar
• Termination Method: Screw terminals for auxiliary connections (verify with datasheet for main connections)

Applications & compatibility

This Acti9 comb busbar is integral to the assembly of modular electrical distribution systems. It is commonly employed in control panels for packaging machinery, material handling equipment, and HVAC systems. Its design ensures compatibility with other Acti9 series modular devices, simplifying system design and installation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9N21036 or contact our technical team for cross-reference assistance with compatible Acti9 components.
