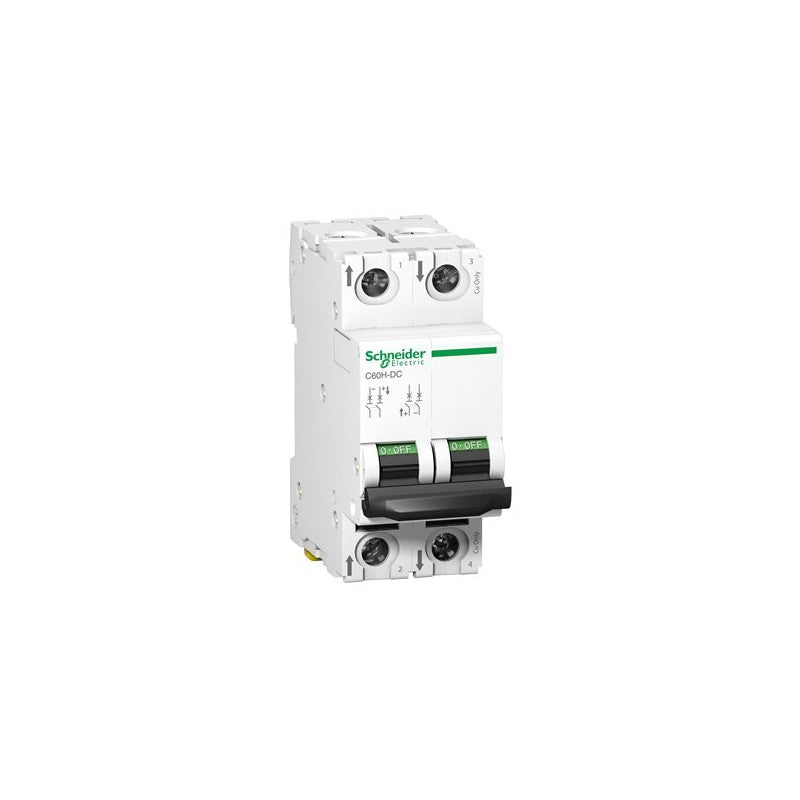

The Schneider Electric C60H miniature circuit breaker is a 2-pole device designed for reliable overcurrent protection in industrial control panels. This specific unit features a 0.5 Amp rating and conforms to the C curve tripping characteristic, indicating its suitability for applications with moderate inrush currents, such as lighting circuits or control transformers. Its compact design facilitates integration into densely populated electrical enclosures.

Technical details

• Series: C60H
• Number of Poles: 2
• Current Rating: 0.5 A
• Trip Curve: C Curve
• Type: Miniature Circuit Breaker
• Voltage Rating: Not specified in provided information; consult manufacturer datasheet for AC/DC voltage compatibility.
• Interrupting Capacity: Not specified in provided information; consult manufacturer datasheet for fault current handling capabilities.
• Terminal Type: Not specified in provided information; consult manufacturer datasheet for connection details.

Applications & compatibility

This C60H circuit breaker is commonly employed in electrical distribution systems for protecting circuits in machinery, control panels, and building automation systems. Its C curve makes it appropriate for applications where inductive loads might cause temporary current surges, such as motor control circuits or solenoid valves, without causing nuisance tripping.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9N61520 or contact our technical team for cross-reference assistance with compatible C60H series components.
