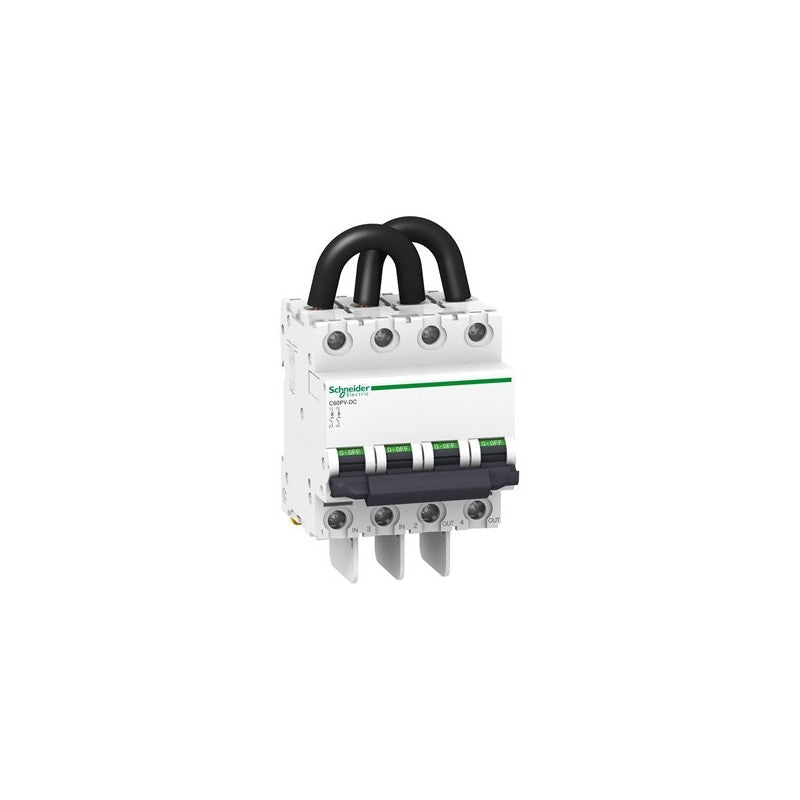

Schneider Electric's C60PV-DC circuit breaker is designed for DC power distribution and protection applications. This 2-pole breaker, part of the C60PV series, offers a 5A current rating and an 800V DC voltage rating, making it suitable for demanding electrical systems. Its C curve tripping characteristic ensures reliable protection against overcurrents and short circuits in photovoltaic and other DC installations.

Technical details

• Series: C60PV-DC
• Poles: 2
• Current Rating: 5 Amperes (A)
• Voltage Rating: 800 Volts Direct Current (V DC)
• Tripping Curve: C Curve
• Interrupting Capacity: Specific interrupting capacity should be verified against the manufacturer's datasheet for precise application suitability.
• Terminal Type: Screw terminals for secure connection.
• Mounting: DIN rail mountable for standard industrial enclosures.

Applications & compatibility

This Schneider Electric circuit breaker is commonly employed in photovoltaic (solar power) systems for DC circuit protection, as well as in other DC power distribution networks. It is compatible with systems requiring reliable overcurrent and short-circuit protection up to 800V DC and 5A, ensuring the safety and longevity of DC equipment in renewable energy installations and industrial DC power supplies.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9N61656 or contact our technical team for cross-reference assistance with compatible C60PV series components.
