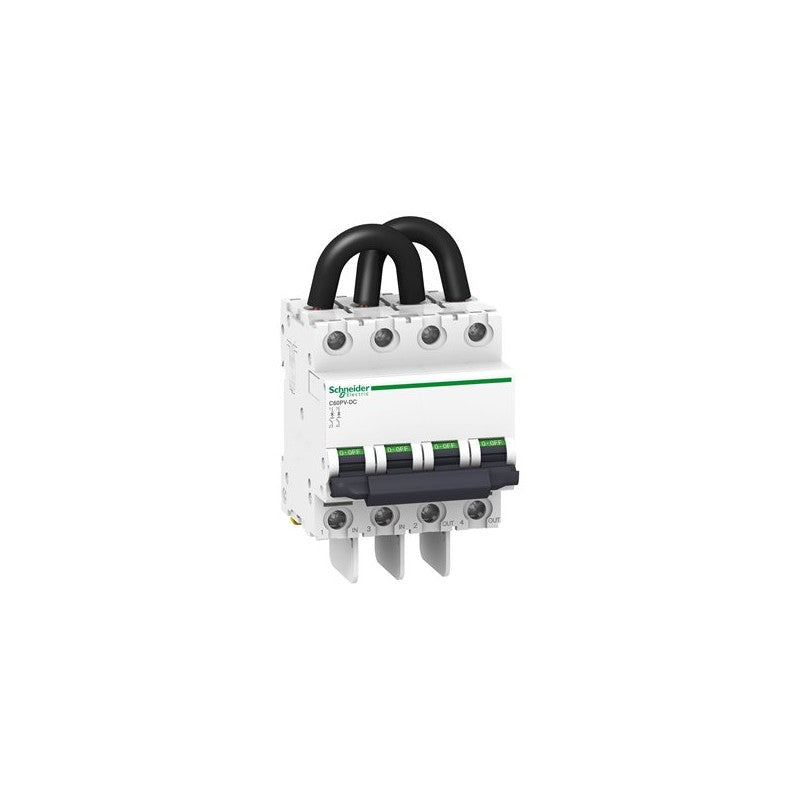

The Schneider Electric A9N61658 is a C60PV-DC circuit breaker designed for DC power distribution and protection. This 2-pole breaker is part of the C60PV series, engineered for photovoltaic (PV) applications and general DC circuit isolation. Its robust construction and specific design parameters make it suitable for demanding DC environments.

Technical details

• Series: C60PV-DC
• Poles: 2
• Current Rating: 13 A
• Voltage Rating: 800 VDC
• Trip Curve: B curve (typically for resistive loads or circuits with low inrush current)
• Application: Designed for DC circuits, commonly used in solar power systems for overcurrent and short-circuit protection.
• Interrupting Capacity: Specific interrupting capacity should be verified against the manufacturer's datasheet for the A9N61658 model.
• Connection Type: Terminal type and wire accommodation should be confirmed via the official Schneider Electric documentation.

Applications & compatibility

This Schneider Electric circuit breaker is frequently deployed in solar energy installations, including rooftop PV systems and utility-scale solar farms, for protecting DC strings and inverters. It is also applicable in other DC power distribution networks requiring reliable overcurrent protection, such as battery storage systems and DC control circuits.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9N61658 or contact our technical team for cross-reference assistance with compatible C60PV components.
