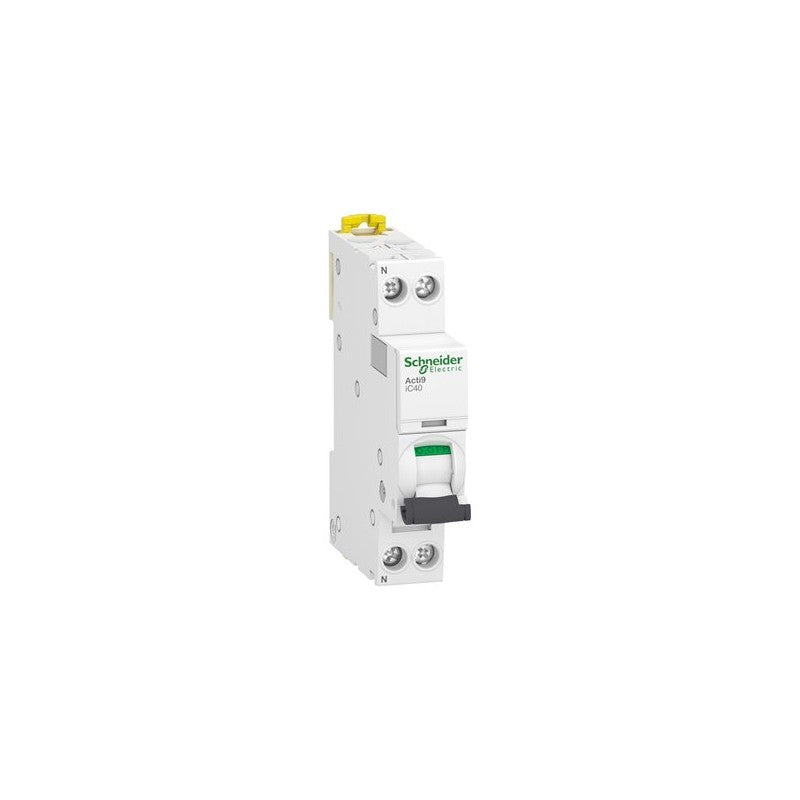

The Schneider Electric Acti9 iC40 miniature circuit-breaker is designed for reliable overcurrent protection in single-phase and neutral applications. This specific unit, identified by the part number A9P42606, features a 1P+N configuration and is rated for 6A with a B Curve tripping characteristic, suitable for protecting circuits with moderate inductive loads. Its robust construction ensures dependable operation within demanding industrial environments.

Technical details

• Series: Acti9 iC40
• Configuration: 1 Pole + Neutral (1P+N)
• Current Rating: 6 Amperes (A)
• Tripping Curve: B Curve
• Breaking Capacity: 4500 Amperes (A) / 6 kiloamperes (kA)
• Voltage Rating: Not explicitly specified in the provided information. Buyers should verify against the manufacturer's datasheet for precise voltage compatibility.
• Terminal Type: Not explicitly specified. Buyers should verify against the manufacturer's datasheet for terminal details.
• Mounting Type: DIN Rail Mount (standard for miniature circuit-breakers)

Applications & compatibility

This Acti9 iC40 miniature circuit-breaker is commonly employed in residential, commercial, and light industrial electrical distribution systems. It provides essential protection for lighting circuits, socket outlets, and control circuits where a B Curve characteristic is appropriate for safeguarding against short circuits and overloads. Its 1P+N design makes it suitable for single-phase systems requiring neutral conductor switching.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P42606 or contact our technical team for cross-reference assistance with compatible Acti9 components.
