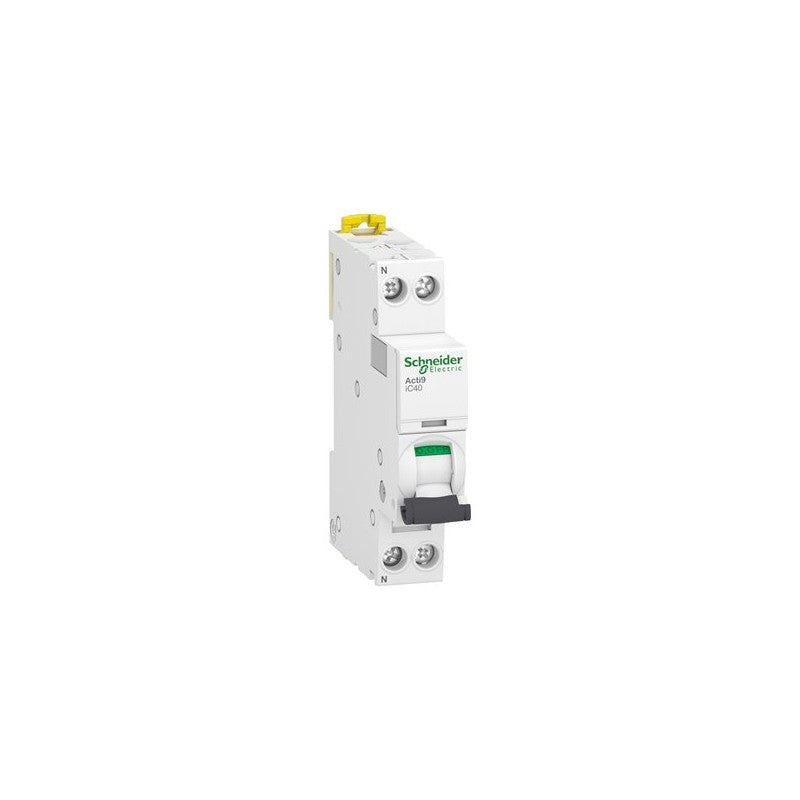

The Schneider Electric Acti9 iC40 miniature circuit-breaker is designed for reliable overcurrent protection in single-phase and neutral applications. This 1P+N device features a 16A current rating and a B curve tripping characteristic, making it suitable for protecting circuits with moderate inductive loads. Its robust construction ensures dependable operation within demanding industrial environments.

Technical details

• Series: Acti9 iC40
• Configuration: 1 Pole + Neutral (1P+N)
• Current Rating: 16A
• Tripping Curve: B Curve
• Breaking Capacity: 4500A / 6kA
• Voltage Rating: Not explicitly specified in provided information; verify against manufacturer datasheet for specific voltage class (e.g., 230/400V AC).
• Terminal Type: Not explicitly specified; typically screw terminals for this series.
• Mounting Type: DIN rail mount

Applications & compatibility

This miniature circuit-breaker is commonly employed in electrical distribution panels for residential, commercial, and light industrial settings. It provides essential protection for lighting circuits, socket outlets, and control circuits where a B curve is specified for its sensitivity to short circuits. Ensure compatibility with your specific system voltage and wiring requirements by consulting the manufacturer's datasheet.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P42616 or contact our technical team for cross-reference assistance with compatible Acti9 components.
