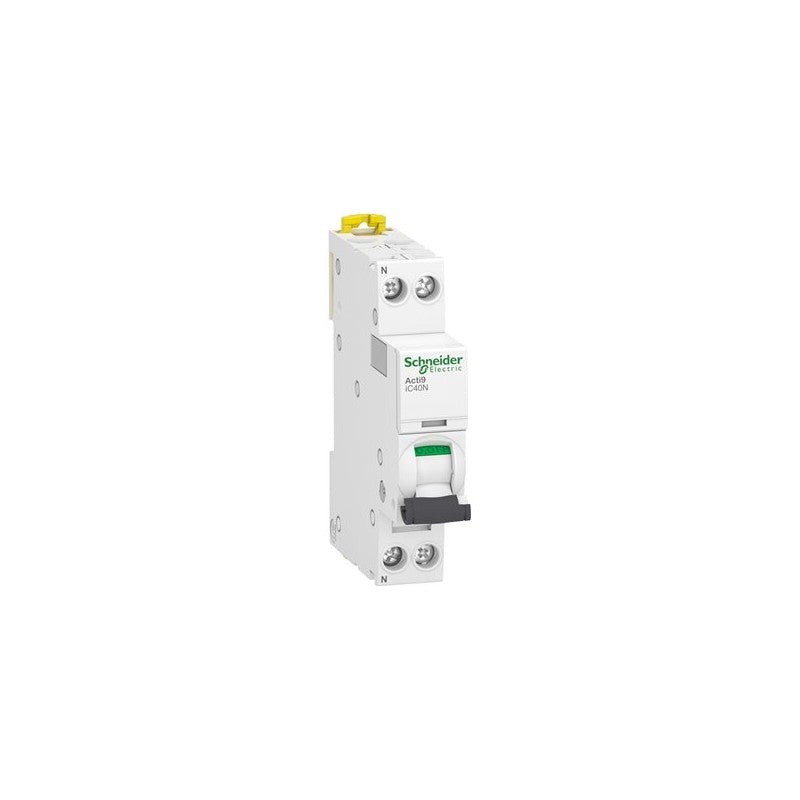

The Schneider Electric Acti9 iC40N miniature circuit-breaker is designed for reliable overcurrent protection in single-phase and neutral applications. This 1P+N device features a 32A current rating and a B curve tripping characteristic, suitable for protecting circuits with moderate inductive loads. It is engineered to provide essential safety and operational continuity within electrical distribution systems.

Technical details

• Series: Acti9 iC40N
• Configuration: 1 Pole + Neutral (1P+N)
• Current Rating: 32 Amperes (A)
• Tripping Curve: B Curve
• Breaking Capacity: 6000 Amperes (A) at 230/400V, 10 kiloamperes (kA) at 230V
• Voltage Rating: Compatible with standard mains voltages; specific voltage rating should be verified against manufacturer datasheet for precise application limits.
• Number of Modules: Typically occupies 2 modules in a standard DIN rail enclosure.
• Terminal Type: Screw terminals for secure conductor connection.
• IP Rating: Typically IP20 for finger protection in enclosed environments.

Applications & compatibility

This miniature circuit-breaker is commonly employed in residential, commercial, and light industrial electrical installations. It is ideal for protecting lighting circuits, socket outlets, and control circuits where a B curve is specified. The Acti9 iC40N series is designed for seamless integration into standard distribution boards and panelboards.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P44632 or contact our technical team for cross-reference assistance with compatible Acti9 components.
