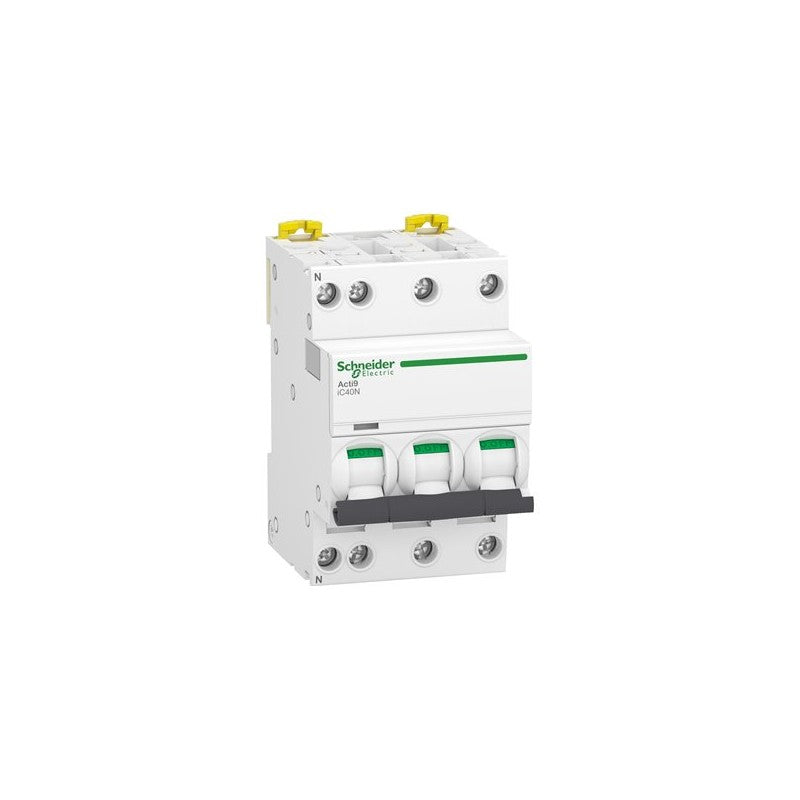

The Schneider Electric Acti9 iC40N miniature circuit-breaker is engineered for robust protection in three-phase and neutral applications. This 3P+N device, rated at 10A with a B Curve tripping characteristic, is designed to safeguard electrical circuits against overcurrents and short circuits, offering a breaking capacity of 6000A at 6000A/10kA. It is a critical component for ensuring operational continuity and safety in demanding industrial environments.

Technical details

• Series: Acti9 iC40N
• Configuration: 3 Pole + Neutral (3P+N)
• Current Rating: 10 Amperes (A)
• Tripping Curve: B Curve
• Short-Circuit Breaking Capacity: 6000A / 10kA
• Voltage Rating: Verify against manufacturer datasheet for specific voltage compatibility (e.g., 230/400V AC).
• Number of Modules: Typically 4 modules wide (verify against datasheet).
• Terminal Type: Screw terminals (verify against datasheet).

Applications & compatibility

This miniature circuit-breaker is commonly deployed in distribution boards and control panels for protecting individual circuits in commercial and industrial settings. Its B Curve characteristic makes it suitable for applications where inrush currents are relatively low, such as lighting circuits, socket outlets, and control circuits for automation equipment. It is compatible with standard DIN rail mounting systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P44710 or contact our technical team for cross-reference assistance with compatible Acti9 components.
