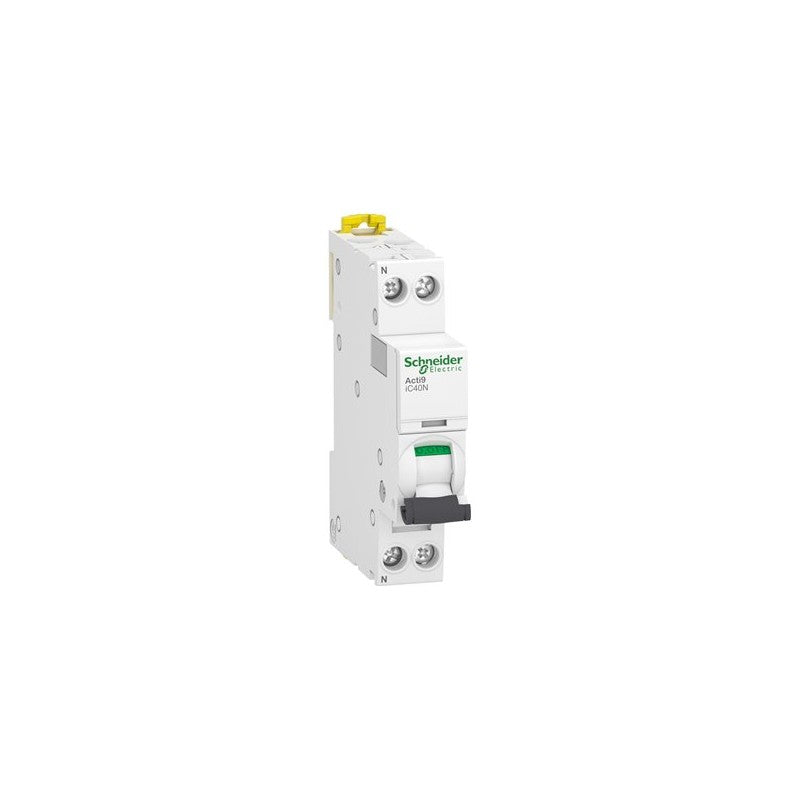

The Schneider Electric Acti9 iC40N miniature circuit-breaker is designed for reliable overcurrent protection in single-phase plus neutral applications. This specific unit, the A9P54602, features a 2A current rating and operates with a C curve tripping characteristic, suitable for protecting circuits with moderate inrush currents. It is engineered to provide robust safety and operational continuity in demanding electrical distribution systems.

Technical details

• Series: Acti9 iC40N
• Configuration: 1 Pole + Neutral (1P+N)
• Rated Current: 2 Amperes (A)
• Tripping Curve: Type C
• Short-circuit Breaking Capacity: 6000 Amperes (A) at 230/400V, 10 kiloamperes (kA) at 230V
• Voltage Rating: Typically 230/400V AC (verify with manufacturer datasheet for specific application voltage)
• Terminal Type: Screw terminals
• Mounting Type: DIN rail mount

Applications & compatibility

This Acti9 iC40N miniature circuit-breaker is commonly employed in residential, commercial, and light industrial electrical distribution boards. It is ideal for protecting lighting circuits, socket outlets, and small motor loads where a C curve is specified for its ability to handle typical inductive loads without nuisance tripping. Its compact form factor ensures efficient use of space within electrical enclosures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P54602 or contact our technical team for cross-reference assistance with compatible Acti9 components.
