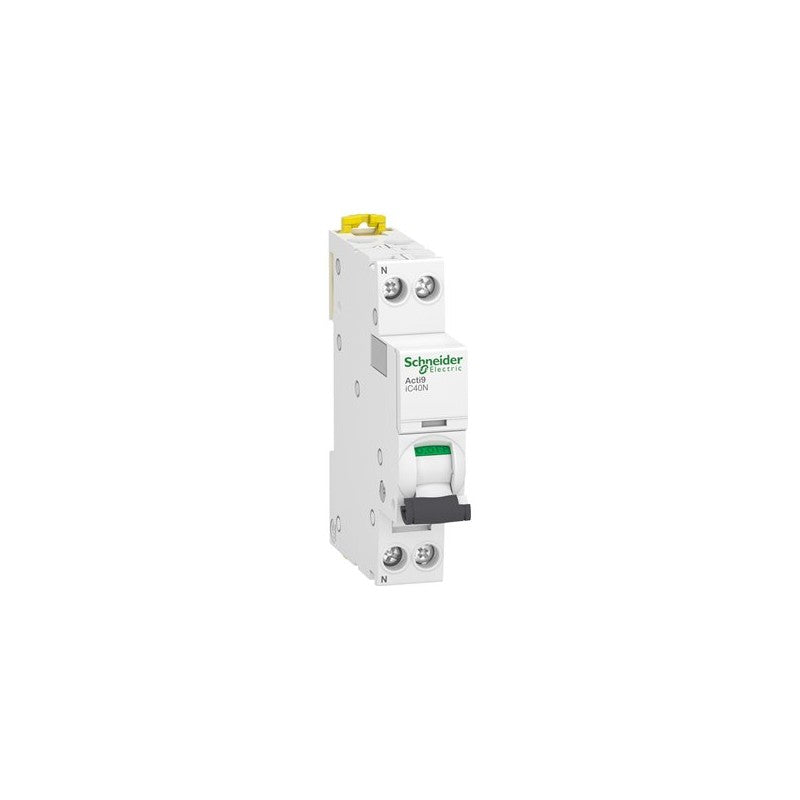

The Schneider Electric Acti9 iC40N miniature circuit-breaker is engineered for reliable overcurrent protection in single-phase and neutral applications. This device, part of the Acti9 series, features a C curve tripping characteristic, making it suitable for circuits with moderate inrush currents, such as those found in lighting or control systems. Its robust design ensures consistent performance in demanding industrial environments.

Technical details

• Series: Acti9 iC40N
• Configuration: 1 Pole + Neutral (1P+N)
• Current Rating: 16 Amperes (16A)
• Tripping Curve: C Curve
• Breaking Capacity: 6000A at 230/400V, 10kA at 230V
• Voltage Rating: Designed for standard industrial voltages (verify specific voltage requirements with manufacturer datasheet)
• Number of Poles: 2 (1 protected pole and 1 neutral conductor)
• Terminal Type: Screw terminals for secure connections
• Mounting Type: DIN rail mountable for standard electrical enclosures

Applications & compatibility

This miniature circuit-breaker is commonly deployed in electrical distribution panels for commercial and industrial facilities. It provides essential protection for circuits in building automation systems, control cabinets, and general power distribution applications where reliable circuit interruption is critical. The C curve rating makes it particularly well-suited for protecting circuits feeding inductive loads.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P54616 or contact our technical team for cross-reference assistance with compatible Acti9 components.
