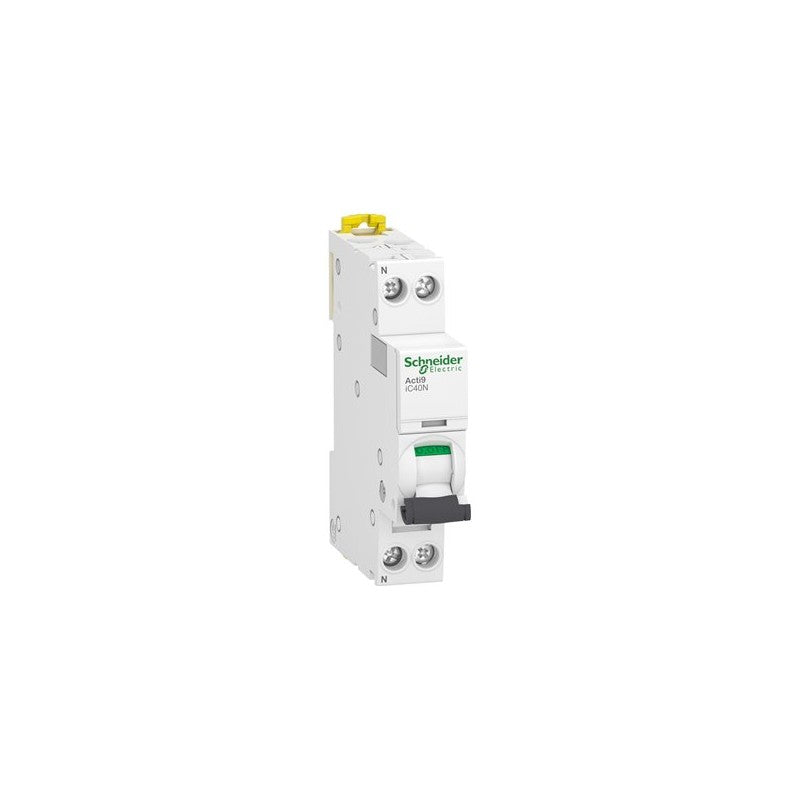

The Schneider Electric Acti9 iC40N miniature circuit-breaker is designed for reliable overcurrent protection in single-phase and neutral applications. This 1P+N device features a 20A current rating and a C curve tripping characteristic, suitable for protecting circuits with moderate inductive loads. It is engineered to provide robust safety and operational continuity in demanding industrial environments.

Technical details

• Series: Acti9 iC40N
• Configuration: 1 Pole + Neutral (1P+N)
• Rated Current: 20 Amperes (A)
• Tripping Curve: Type C
• Short-circuit Breaking Capacity: 6000 Amperes (A) at 230/400V, 10 kA at 230V
• Voltage Rating: Typically 230/400 Volts AC (verify with manufacturer datasheet for specific model variations)
• Number of Modules: 2 DIN modules
• Terminal Type: Screw terminals

Applications & compatibility

This miniature circuit-breaker is commonly employed in electrical distribution panels for residential, commercial, and light industrial applications. It is ideal for protecting circuits in control panels, machinery, and building services where reliable and sensitive overload and short-circuit protection is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P54620 or contact our technical team for cross-reference assistance with compatible Acti9 components.
