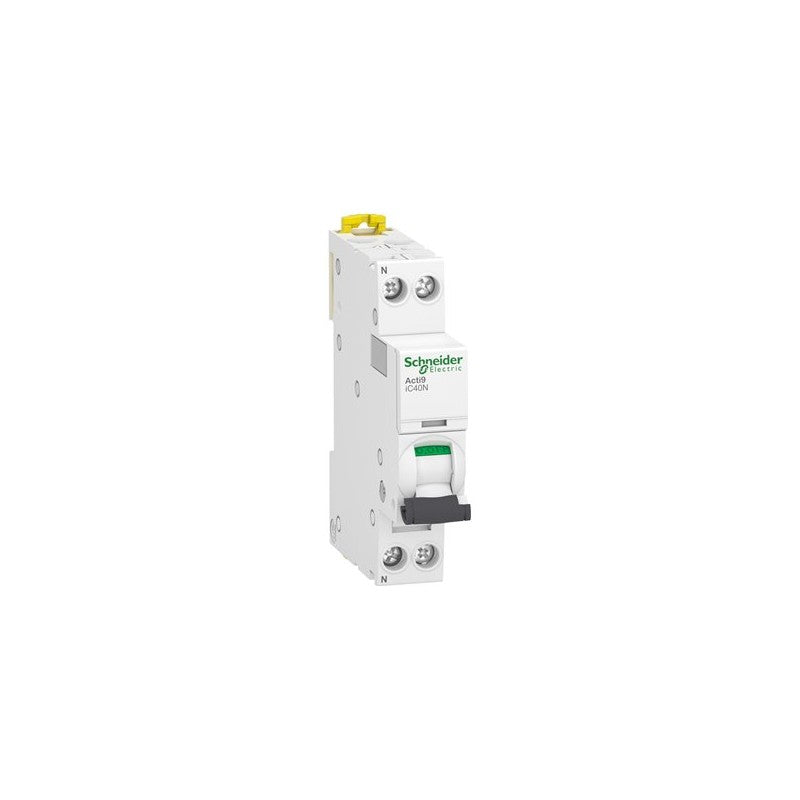

The Schneider Electric Acti9 iC40N miniature circuit-breaker is engineered for reliable overcurrent protection in single-phase and neutral applications. This device, part of the Acti9 series, offers a robust C Curve tripping characteristic, suitable for protecting circuits with moderate inductive loads. Its design ensures efficient circuit isolation and fault interruption.

Technical details

• Series: Acti9 iC40N
• Configuration: 1 Pole + Neutral (1P+N)
• Rated Current: 25A
• Tripping Curve: C Curve
• Short-circuit Breaking Capacity (Icn): 6000A at 230/400V
• Ultimate Short-circuit Breaking Capacity (Icu): 10kA
• Voltage Rating: Verified against manufacturer datasheet for specific application voltage.
• Number of Modules: Typically 2 modules wide (verify against datasheet for precise dimensions).

Applications & compatibility

This miniature circuit-breaker is commonly deployed in residential, commercial, and light industrial electrical distribution systems. It provides essential protection for lighting circuits, socket outlets, and small motor loads. The Acti9 iC40N is designed to integrate seamlessly within standard Acti9 distribution boards and enclosures.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P54625 or contact our technical team for cross-reference assistance with compatible Acti9 components.
