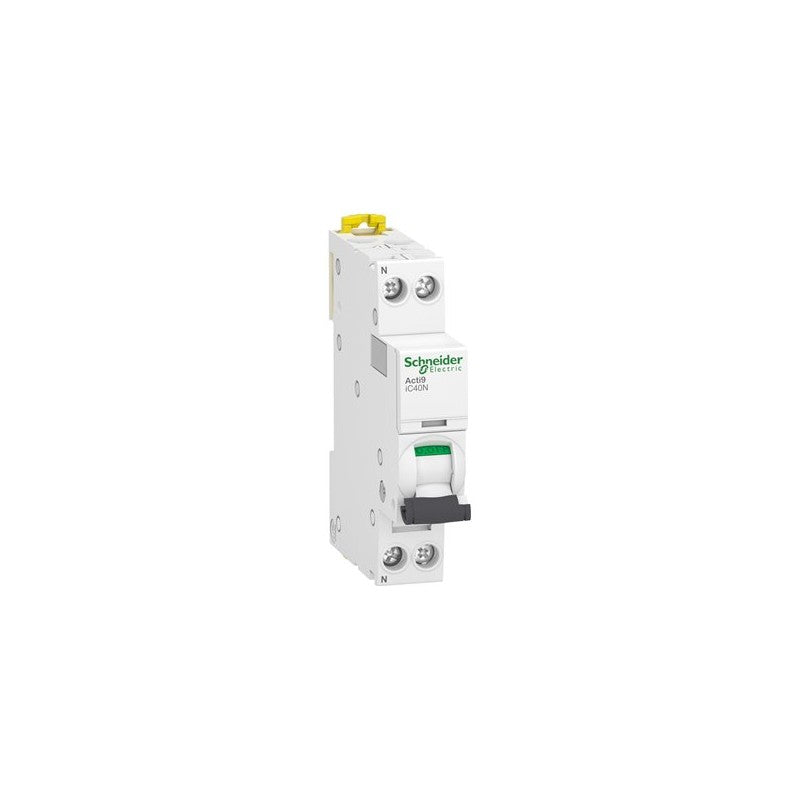

The Schneider Electric Acti9 iC40N miniature circuit-breaker is designed for reliable overcurrent protection in single-phase and neutral applications. This 1P+N device features a C curve tripping characteristic, indicating it is suitable for circuits with moderate inductive loads, such as motors and transformers, where inrush currents are expected. Its robust construction ensures dependable operation in demanding industrial environments.

Technical details

• Series: Acti9 iC40N
• Configuration: 1 Pole + Neutral (1P+N)
• Current Rating: 32 Amperes (32A)
• Tripping Curve: C Curve
• Breaking Capacity: 6000A at 230/400V, 10kA at 230V
• Voltage Rating: Typically 230/400V AC (verify with manufacturer datasheet for specific model variations)
• Number of Modules: 2 DIN modules
• Terminal Type: Screw terminals

Applications & compatibility

This miniature circuit-breaker is commonly employed in distribution boards for residential, commercial, and light industrial facilities. It provides essential protection for circuits powering lighting, socket outlets, and small motor loads. The Acti9 iC40N series is designed for easy installation and integration into standard electrical panel systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P54632 or contact our technical team for cross-reference assistance with compatible Acti9 components.
