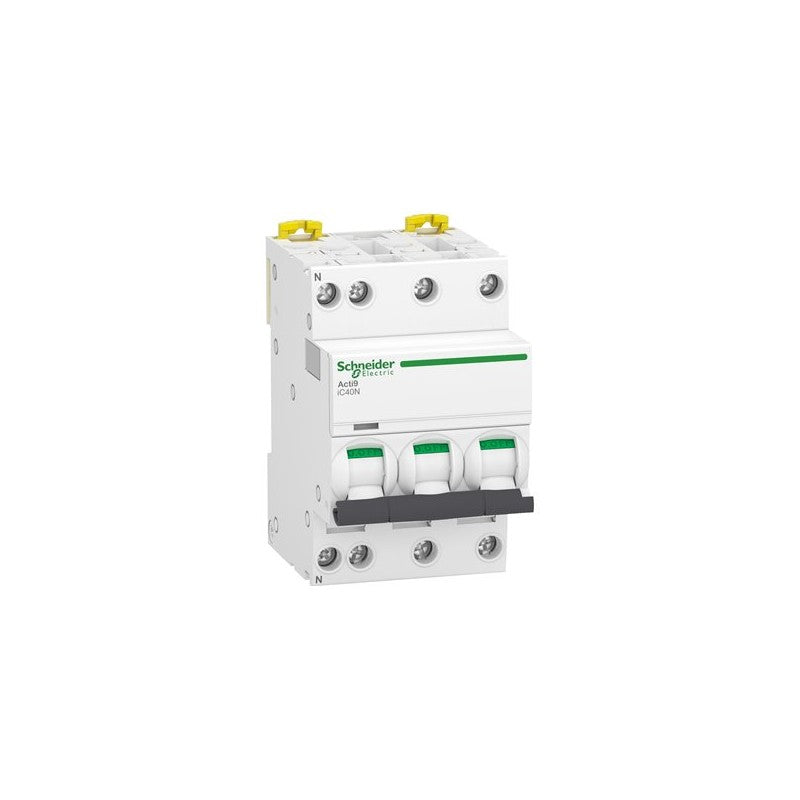

The Schneider Electric Acti9 iC40N miniature circuit-breaker is engineered for robust electrical protection in demanding industrial environments. This 3-pole plus neutral (3P+N) device features a 20A current rating and a C curve trip characteristic, designed to safeguard circuits against overloads and short circuits. Its 6000A/10kA breaking capacity ensures reliable interruption of fault currents, making it suitable for distribution boards and control panels.

Technical details

• Series: Acti9 iC40N
• Configuration: 3-Pole + Neutral (3P+N)
• Current Rating: 20 Amperes (A)
• Trip Curve: Type C
• Breaking Capacity: 6000 Amperes (A) at 230/400V AC, 10 kiloamperes (kA) at 230/400V AC
• Voltage Rating: Typically 230/400V AC (verify with manufacturer datasheet for specific model variations)
• Terminal Type: Screw terminals
• Mounting: DIN rail mount

Applications & compatibility

This miniature circuit-breaker is commonly employed in electrical distribution systems for commercial and industrial facilities, including manufacturing plants, control cabinets, and building automation systems. It provides essential overcurrent protection for lighting circuits, socket outlets, and motor loads where a C curve is specified for moderate inrush currents.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9P54720 or contact our technical team for cross-reference assistance with compatible Acti9 components.
