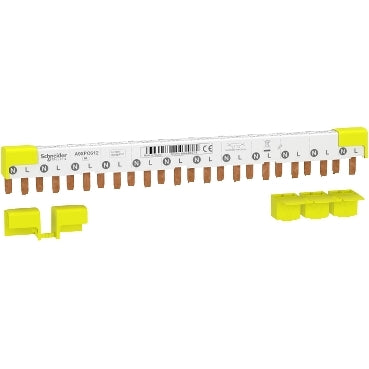

The Schneider Electric Acti9 comb busbar, model A9XPC612, is designed for efficient power distribution within electrical panels. This 1L+N busbar facilitates the connection of multiple Acti9 devices, ensuring a streamlined and organized electrical infrastructure. Its modular design and specific pitch are engineered for compatibility with the Acti9 system, commonly found in commercial and industrial building electrical distribution systems.

Technical details

• Series: Acti9
• Configuration: 1 Phase + Neutral (1L+N)
• Module Pitch: 9 mm
• Number of Modules: 12
• Current Rating: 80 A
• Connection Type: Comb busbar
• Compatibility: Designed for use with Schneider Electric Acti9 modular devices.
• Insulation Voltage: For detailed insulation voltage specifications, please consult the manufacturer's datasheet.

Applications & compatibility

This Acti9 comb busbar is integral to the assembly of electrical distribution boards and sub-distribution boards. It is commonly utilized in applications requiring organized and safe connections for modular circuit breakers, RCDs, and other Acti9 devices. Typical installations include residential complexes, commercial buildings, and light industrial facilities where compact and reliable power distribution is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9XPC612 or contact our technical team for cross-reference assistance with compatible Acti9 components.
