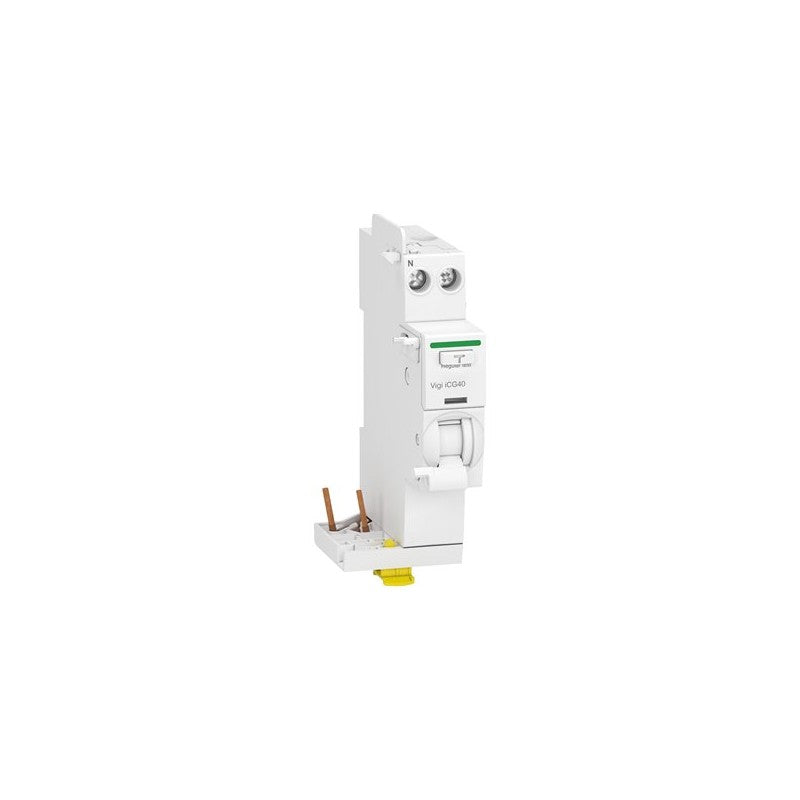

The Schneider Electric Acti9 Vigi iCG40 is an add-on residual current device designed to enhance electrical safety in industrial and commercial installations. This 1P+N device integrates seamlessly with compatible Acti9 circuit breakers, providing essential protection against earth leakage faults. Its robust construction and specific design parameters make it suitable for demanding environments where reliable fault detection is paramount.

Technical details

• Series: Acti9 Vigi iCG40
• Configuration: 1 Pole + Neutral (1P+N)
• Rated Current: 40 A
• Residual Current Sensitivity: 300 mA
• Type: Type A residual current device, sensitive to AC and pulsating DC residual currents.
• Mounting: Designed as an add-on module for compatible Acti9 iC40 miniature circuit breakers.
• Voltage Rating: Compatible with standard industrial voltage systems; specific voltage rating should be verified against the main circuit breaker datasheet.
• Breaking Capacity: Dependent on the associated miniature circuit breaker; refer to the main breaker's specifications.

Applications & compatibility

This add-on residual current device is commonly employed in distribution boards for commercial buildings, industrial facilities, and specialized machinery. It provides crucial protection for circuits in applications such as lighting systems, power outlets, and motor control circuits where the risk of earth faults exists. Compatibility is primarily with Schneider Electric's Acti9 iC40 miniature circuit breaker range.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the A9Y71640 or contact our technical team for cross-reference assistance with compatible Acti9 components.
