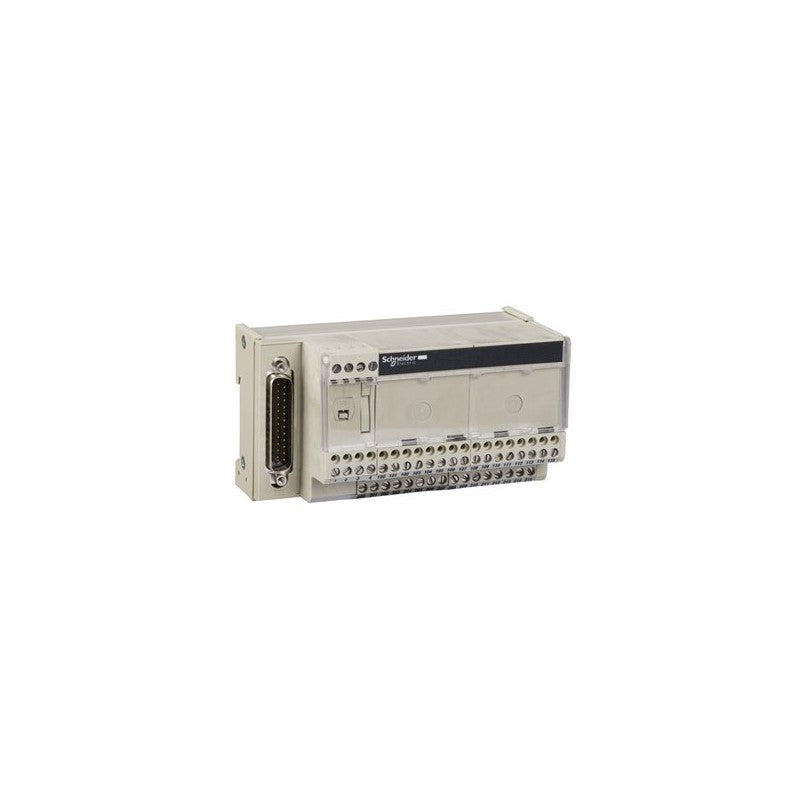

The Schneider Electric ABE7CPA11 is a connection sub-base designed for absolute encoder connections. This component is part of Schneider Electric's Modicon ABE7 series, a range of terminal blocks and connection modules engineered for efficient wiring and signal distribution in industrial automation systems. It facilitates the direct connection of parallel output absolute encoders to compatible automation controllers.

Technical details

• Series: Modicon ABE7
• Function: Connection sub-base for absolute encoder interface
• Connection Type: Designed for parallel output absolute encoders
• Output Configuration: Supports parallel signal transmission
• Mounting: DIN rail mountable (standard for ABE7 series)
• Voltage Rating: Verify with manufacturer datasheet for specific operational voltage limits.
• Current Rating: Verify with manufacturer datasheet for specific operational current limits.
• Dimensions: Standard form factor for ABE7 series sub-bases; refer to datasheet for precise measurements.

Applications & compatibility

This sub-base is commonly utilized in applications requiring precise position feedback from absolute encoders, such as CNC machinery, robotics, material handling systems, and automated assembly lines. It ensures a robust and organized connection point for encoder signals, contributing to the reliability of motion control systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABE7CPA11 or contact our technical team for cross-reference assistance with compatible Modicon ABE7 series components.
