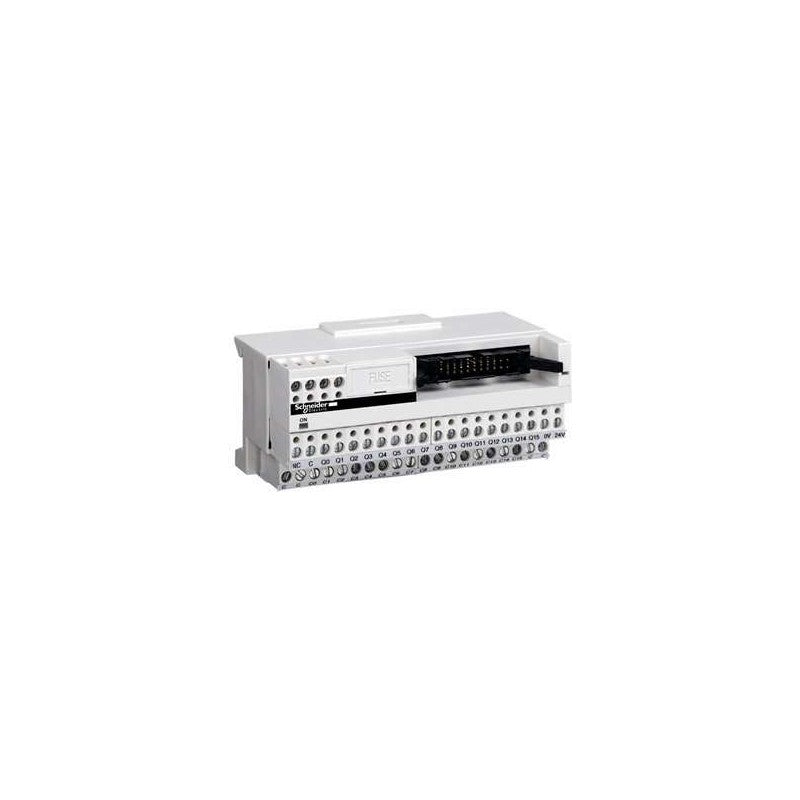

The Schneider Electric ABE7H16C31 is a passive connection sub-base designed for modular I/O expansion within automation systems. This sub-base supports either 16 inputs or 16 outputs, facilitating flexible configuration for various control tasks. It is commonly integrated into Modicon automation architectures to extend the reach of PLC processing power.

Technical details

• Series: Zelio Logic / Modicon Analog I/O
• Configuration: Passive connection sub-base
• Channel Count: Supports 16 inputs or 16 outputs
• Indicator: Features an integrated LED for status indication
• Voltage Compatibility: Designed for use with compatible Schneider Electric control systems; specific voltage requirements should be verified against the manufacturer's datasheet.
• Current Rating: Specific current rating per channel and total should be verified against the manufacturer's datasheet.
• Form Factor: Designed for DIN rail mounting within control cabinets.
• Communication Protocol: Operates as a passive interface, relying on the connected PLC's communication protocol.

Applications & compatibility

This sub-base is integral to expanding the I/O capabilities of Schneider Electric PLCs, particularly within the Modicon and Zelio Logic families. It finds application in machine building, process control, and building automation where discrete signal handling is required. Its modular design allows for efficient integration into custom control panels for packaging machinery, material handling systems, and HVAC control.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABE7H16C31 or contact our technical team for cross-reference assistance with compatible Schneider Electric I/O modules.
