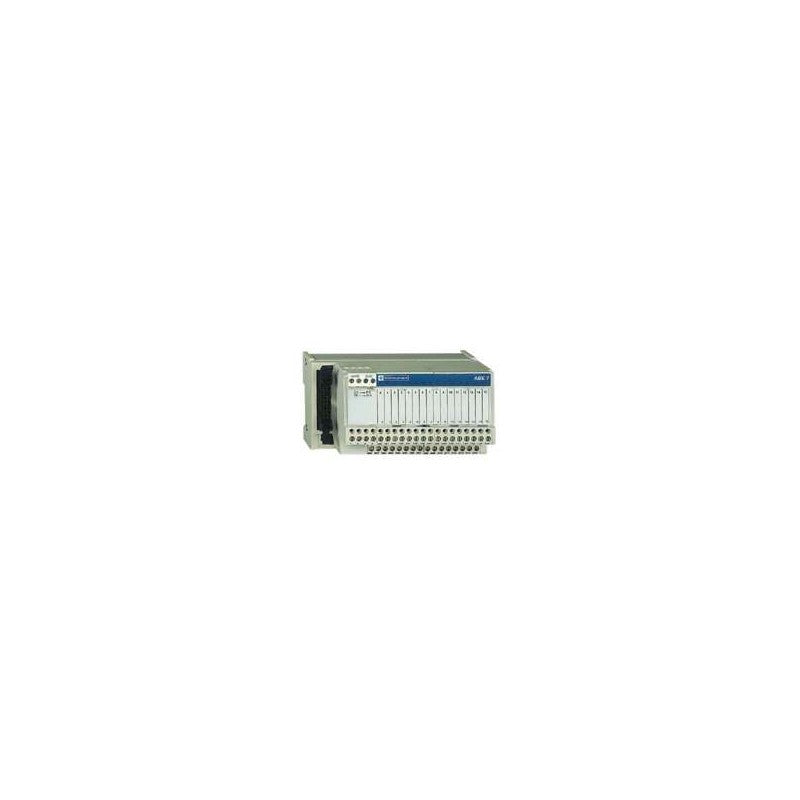

The Schneider Electric ABE7H16R10 is a passive connection sub-base designed for modular I/O expansion within automation systems. This sub-base supports configurations for up to 16 digital inputs or 16 digital outputs, facilitating efficient signal distribution and management in control panels. It is commonly integrated into Modicon M340 and Modicon Premium PLC architectures.

Technical details

• Series: ABE7
• Functionality: Passive connection sub-base
• Channel Capacity: Supports 16 inputs or 16 outputs
• Compatibility: Designed for use with Schneider Electric Modicon M340 and Modicon Premium PLC systems.
• Connection Type: Terminal block connections for I/O wiring.
• Mounting: DIN rail mountable for standard industrial panel installations.
• Form Factor: Compact design for space-efficient panel layouts.
• Voltage Rating: Specific voltage rating for I/O signals should be verified against the manufacturer's datasheet.

Applications & compatibility

This sub-base is integral to building flexible and scalable I/O solutions for a wide range of industrial applications. It is particularly suited for machine control, process automation, and building management systems where modularity and ease of wiring are paramount. Its compatibility with established Schneider Electric PLC families ensures straightforward integration into existing or new automation projects.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABE7H16R10 or contact our technical team for cross-reference assistance with compatible Modicon components.
