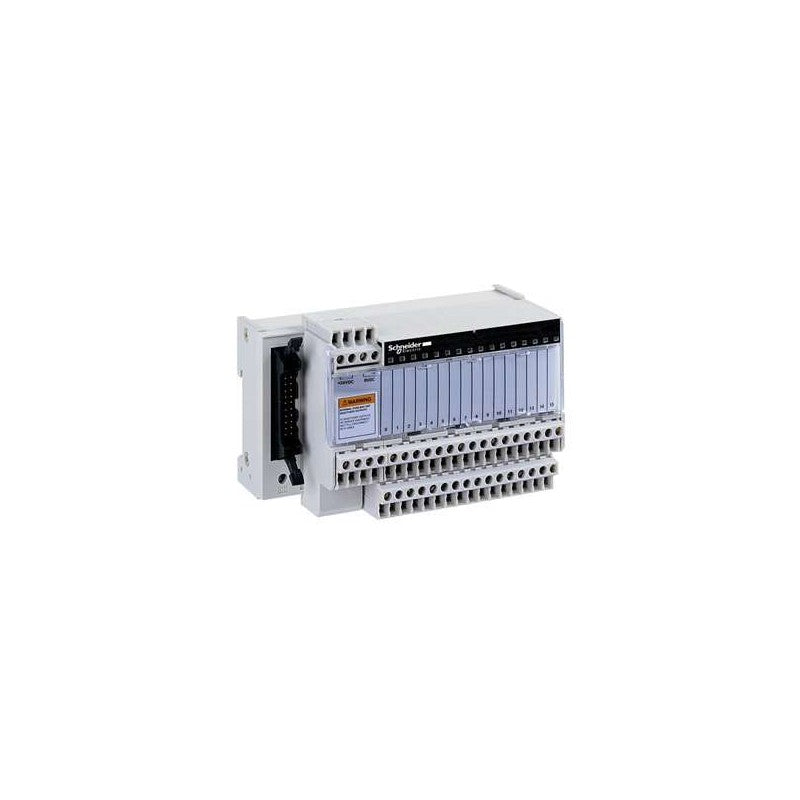

The Schneider Electric ABE7H16R20 is a passive connection sub-base designed for modular I/O expansion within industrial automation systems. This sub-base is engineered to accommodate either 16 digital inputs or 16 digital outputs, providing a flexible interface for connecting field devices to a PLC or other control system. It is a key component in building scalable and efficient control architectures, commonly found in machine control and process automation applications.

Technical details

• Series: Zelio Logic / Modicon M221 (ABE7 series)
• Configuration: Passive connection sub-base
• Channel Capacity: Supports 16 inputs or 16 outputs
• Terminal Type: Screw terminals for secure wiring
• Mounting: DIN rail mountable for standard industrial enclosures
• Dimensions: Specific dimensions are not encoded in the part number; refer to manufacturer datasheet for precise measurements.
• Voltage Rating: Designed for low-voltage DC signal interfacing; specific voltage limits should be confirmed with the manufacturer's documentation.
• Current Rating: Suitable for standard digital signal currents; refer to manufacturer datasheet for specific current handling capabilities per channel.

Applications & compatibility

This sub-base is integral to systems requiring modular I/O expansion, such as those found in packaging machinery, material handling systems, and assembly lines. It facilitates the connection of sensors, switches, and actuators to control platforms like the Schneider Electric Modicon M221 series or Zelio Logic smart relays, enabling precise control and monitoring of automated processes.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABE7H16R20 or contact our technical team for cross-reference assistance with compatible Schneider Electric I/O modules.
