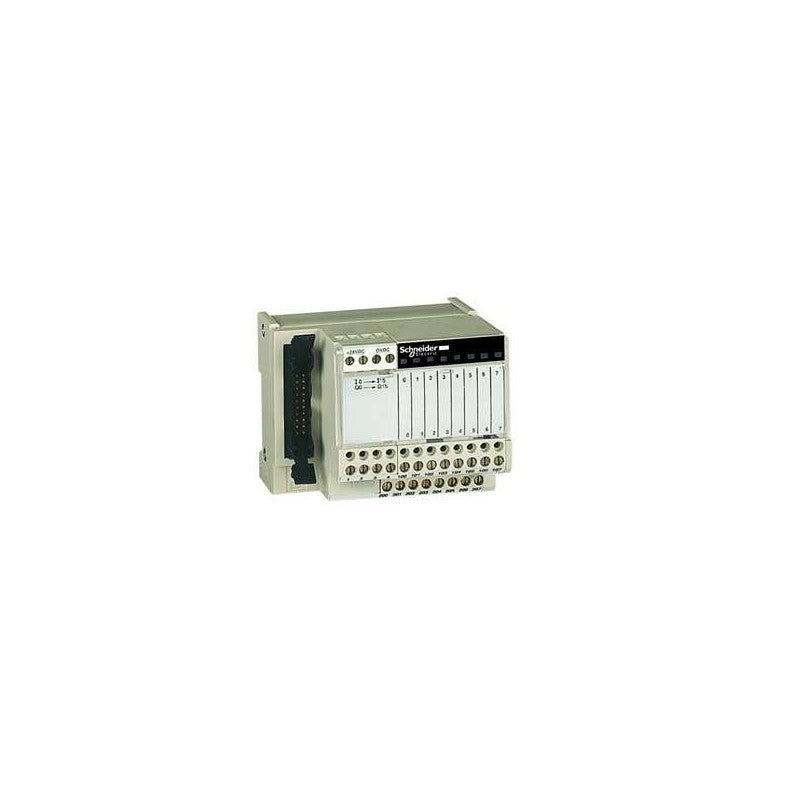

The Schneider Electric ABE7H16R50 is a passive connection sub-base designed for modular I/O expansion within automation systems. This sub-base is engineered to accommodate either 16 digital inputs or 16 digital outputs, providing a flexible interface for connecting field devices to a PLC or other control system. It is commonly utilized in machine control applications requiring straightforward signal distribution and termination.

Technical details

• Series: ABE7
• Functionality: Passive connection sub-base
• Configuration: Supports 16 inputs or 16 outputs
• Terminal Type: Screw terminals for secure connections
• Mounting: Designed for DIN rail mounting
• Voltage Rating: Compatible with standard industrial control voltages (verify specific voltage requirements with manufacturer datasheet)
• Current Rating: Suitable for standard digital I/O signal currents (verify specific current requirements with manufacturer datasheet)
• Dimensions: Compact form factor for space-constrained enclosures (verify specific dimensions with manufacturer datasheet)

Applications & compatibility

This sub-base is integral to various industrial automation setups, including packaging machinery, material handling systems, and assembly lines. It facilitates the efficient wiring and management of digital signals, ensuring reliable communication between sensors, actuators, and control units. The ABE7H16R50 is compatible with Schneider Electric's range of I/O modules that utilize the ABE7 connection system.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABE7H16R50 or contact our technical team for cross-reference assistance with compatible ABE7 series components.
