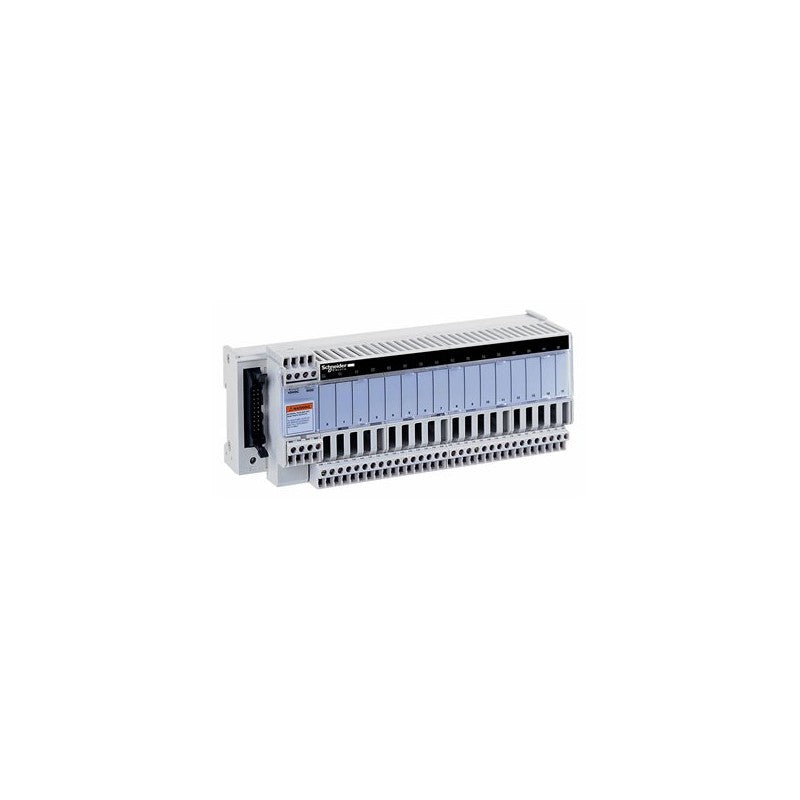

The Schneider Electric ABE7P16T215 is a sub-base designed for plug-in relays within the ABE7 series. This component facilitates the connection and organization of 16 channels of relay inputs or outputs, incorporating integrated fuse protection for each channel. Its 10 mm relay spacing ensures a compact footprint for panel mounting.

Technical details

• Series: ABE7
• Functionality: Sub-base for plug-in relays
• Channel Count: 16 channels
• Integrated Protection: Fuses included for each channel
• Relay Spacing: 10 mm
• Form Factor: Designed for DIN rail mounting (standard for ABE7 series)
• Voltage Rating: Please verify specific voltage requirements with the manufacturer's datasheet, as this is not explicitly encoded in the provided part number.
• Current Rating: Please verify specific current requirements with the manufacturer's datasheet, as this is not explicitly encoded in the provided part number.

Applications & compatibility

This ABE7P16T215 sub-base is commonly utilized in industrial control panels for applications requiring modular relay expansion and protection. It is suitable for integration into various automation systems, including those found in packaging machinery, material handling equipment, and process control systems where reliable signal interfacing and protection are critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABE7P16T215 or contact our technical team for cross-reference assistance with compatible ABE7 series components.
