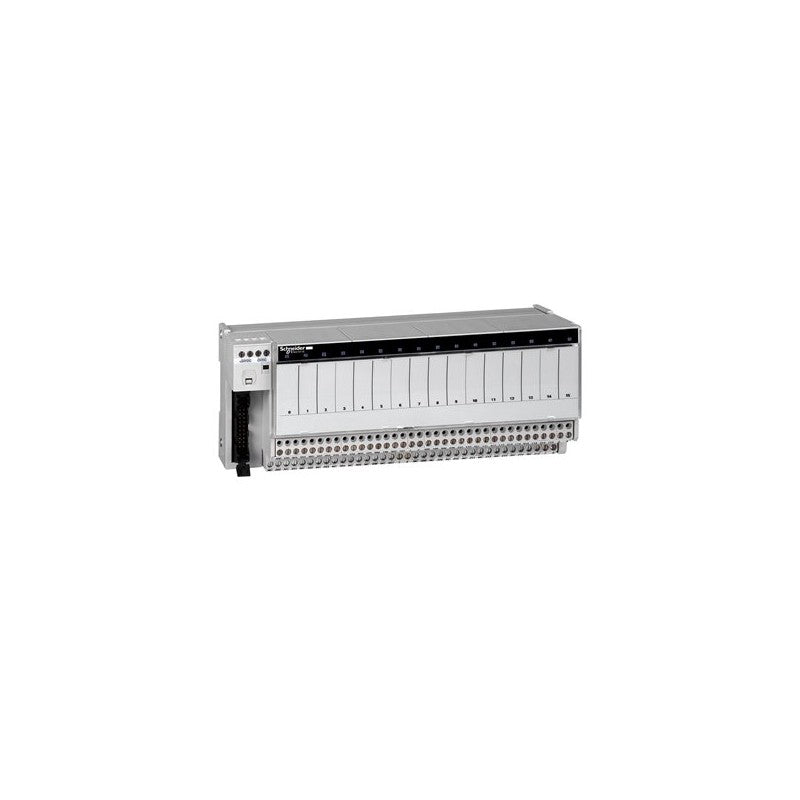

The Schneider Electric ABE7P16T318 is a sub-base designed for plug-in relays within the ABE7 series. This component facilitates the connection and management of 16 channels, incorporating integrated fuses and an isolator for enhanced circuit protection and operational safety. Its compact 12.5 mm width makes it suitable for space-constrained control panels.

Technical details

• Series: ABE7
• Channel Count: 16
• Integrated Features: Fuses, Isolator
• Relay Width: 12.5 mm
• Compatibility: Designed for Schneider Electric ABE7 plug-in relays. Specific relay models and voltage ratings should be verified against the manufacturer's datasheet for complete compatibility.
• Mounting: DIN rail mountable (standard for this series).
• Termination Type: Screw terminals for secure wiring of input and output signals.
• Construction: Durable plastic housing designed for industrial environments.

Applications & compatibility

This ABE7 sub-base is commonly utilized in industrial control systems requiring modular relay configurations. It is well-suited for applications such as discrete manufacturing, process automation, and building management systems where reliable signal switching and isolation are critical. Its design ensures straightforward integration with compatible Schneider Electric relay modules.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABE7P16T318 or contact our technical team for cross-reference assistance with compatible ABE7 series components.
