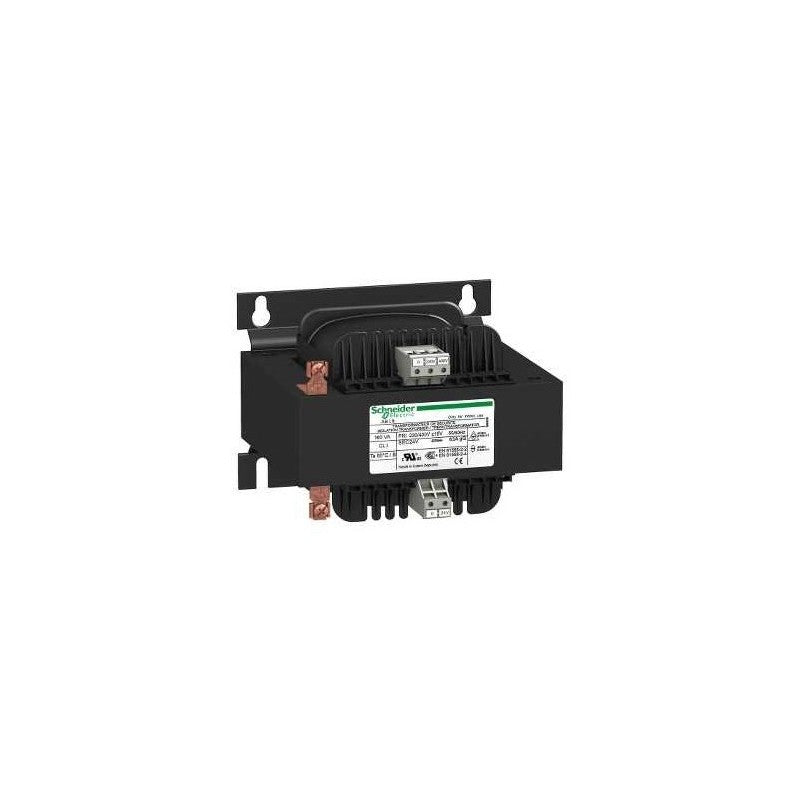

The Schneider Electric ABL6TS02G is a voltage transformer designed for industrial power conversion applications. This unit is part of the ABL6 series, known for its robust construction and reliable performance in demanding environments. It facilitates the conversion of primary voltages within the 230 to 400 VAC range down to a secondary output of 115 VAC.

Technical details

• Series: ABL6
• Primary Voltage Range: 230...400 VAC
• Secondary Voltage: 1 x 115 VAC
• Apparent Power Rating: 25 VA
• Transformer Type: Control circuit transformer
• Mounting Type: DIN rail mountable (verify mounting details against manufacturer datasheet)
• Insulation Class: Class B (verify insulation details against manufacturer datasheet)
• Frequency: 50/60 Hz (verify frequency compatibility against manufacturer datasheet)

Applications & compatibility

This transformer is suitable for providing a stable, isolated power source for control circuits, relays, contactors, and instrumentation in various industrial settings. It is commonly integrated into control panels for machine tools, material handling systems, and process automation equipment where a specific low voltage is required from a higher primary supply.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABL6TS02G or contact our technical team for cross-reference assistance with compatible ABL6 series components.
