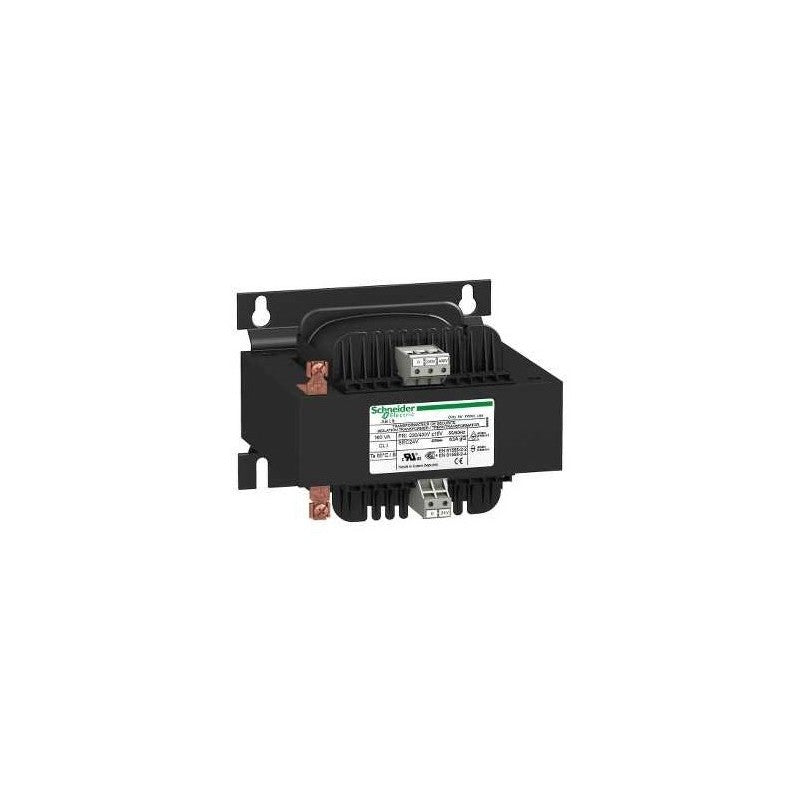

The Schneider Electric ABL6TS16U is a voltage transformer designed for industrial power conversion applications. This unit is part of the ABL6 series, a line of safety and control transformers known for their reliability in demanding environments. It facilitates the conversion of primary voltages within the 230V to 400V range down to a stable 230V output, ensuring proper operation for control circuits and auxiliary equipment.

Technical details

• Series: ABL6
• Primary Voltage Range: 230V to 400V AC
• Secondary Voltage: 230V AC
• Apparent Power Rating: 160 VA
• Transformer Type: Control Transformer
• Mounting Type: Chassis Mount (verify mounting details against manufacturer datasheet)
• Enclosure Type: Open Frame (verify enclosure details against manufacturer datasheet)
• Frequency: 50/60 Hz (typical for this series, verify against manufacturer datasheet)

Applications & compatibility

This transformer is commonly employed in control panels for machinery such as packaging equipment, material handling systems, and HVAC control systems. It provides a stable power source for relays, contactors, timers, and other low-voltage control devices, ensuring consistent performance and longevity of electrical components within these automated systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABL6TS16U or contact our technical team for cross-reference assistance with compatible ABL6 series components.
