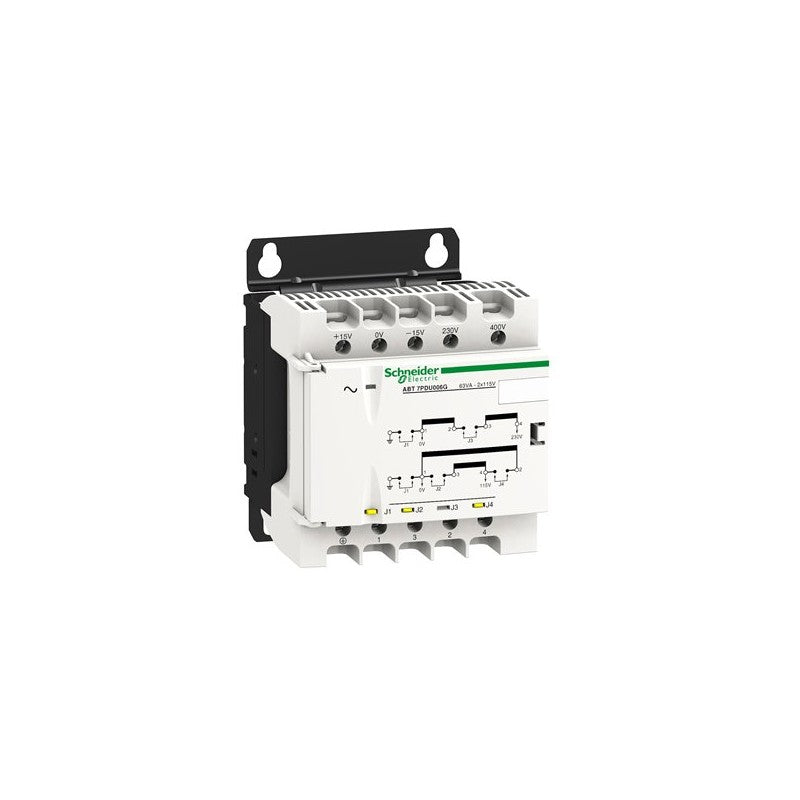

The Schneider Electric ABT7PDU004G is a voltage transformer designed to step down primary voltages for control circuits and auxiliary power. This transformer is part of the ABT series, commonly utilized in industrial control panels and machinery requiring reliable, isolated power sources. It efficiently converts higher input voltages to lower, usable output voltages for sensitive electronic components and control devices.

Technical details

• Series: ABT
• Primary Voltage Range: 230 VAC to 400 VAC
• Secondary Voltage: 2 x 115 VAC
• Apparent Power Rating: 40 VA
• Transformer Type: Control Power Transformer
• Enclosure Type: Open chassis (verify mounting details against manufacturer datasheet)
• Frequency: 50/60 Hz (typical for this series, verify against manufacturer datasheet)
• Insulation Class: Class B (typical for this series, verify against manufacturer datasheet)

Applications & compatibility

This voltage transformer is suitable for a wide range of industrial automation applications, including motor control centers, programmable logic controller (PLC) power supplies, and general control circuitry. It provides a stable 115 VAC output for relays, timers, indicator lights, and other low-voltage control components within systems operating on higher primary voltages.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABT7PDU004G or contact our technical team for cross-reference assistance with compatible ABT series components.
