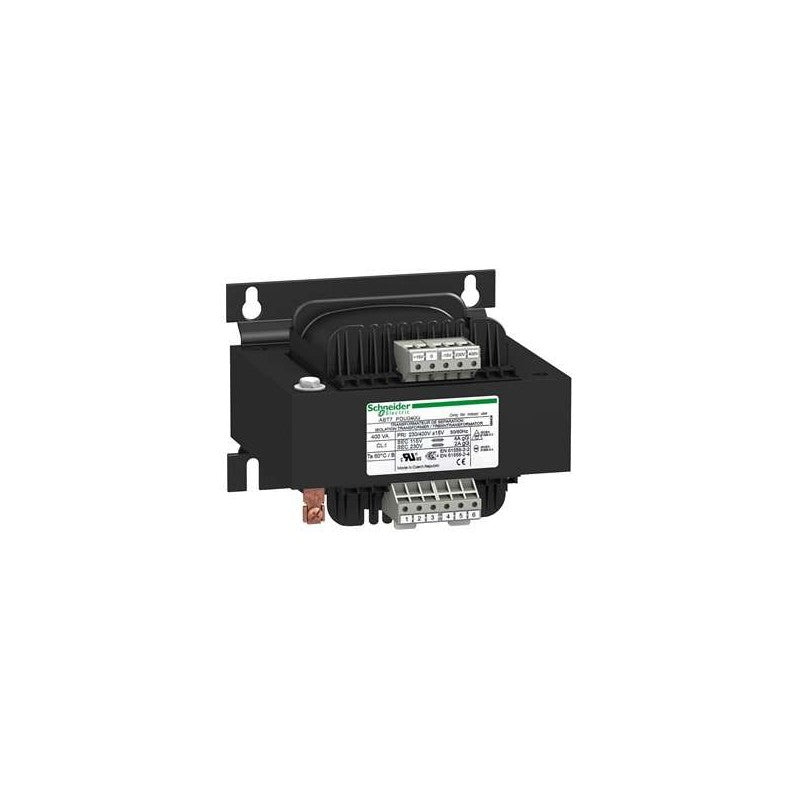

The Schneider Electric ABT7PDU100G is a voltage transformer designed for industrial power distribution and control systems. This transformer is part of the ABT series, commonly utilized in automation panels and machinery requiring voltage conversion. It efficiently steps down primary voltages to provide secondary power for control circuits and auxiliary equipment.

Technical details

• Primary Voltage: Configurable for 230 VAC or 400 VAC input.
• Secondary Voltage: Provides 2 x 115 VAC output.
• Apparent Power Rating: 1 kVA (kilovolt-ampere).
• Series: ABT (Automation Block Transformer).
• Enclosure Type: Typically housed in a compact, panel-mountable enclosure suitable for industrial environments.
• Frequency: Designed for standard industrial power frequencies (e.g., 50/60 Hz), though specific frequency rating should be confirmed via datasheet.
• Insulation Class: Standard industrial insulation class, refer to datasheet for precise rating.
• Connection Type: Screw terminals for primary and secondary connections.

Applications & compatibility

This voltage transformer is suitable for a wide range of industrial automation applications, including motor control centers, programmable logic controller (PLC) power supplies, and general control panel wiring. It is commonly found in machinery for packaging, material handling, and process control where voltage step-down is required for auxiliary components.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABT7PDU100G or contact our technical team for cross-reference assistance with compatible Schneider Electric automation components.
