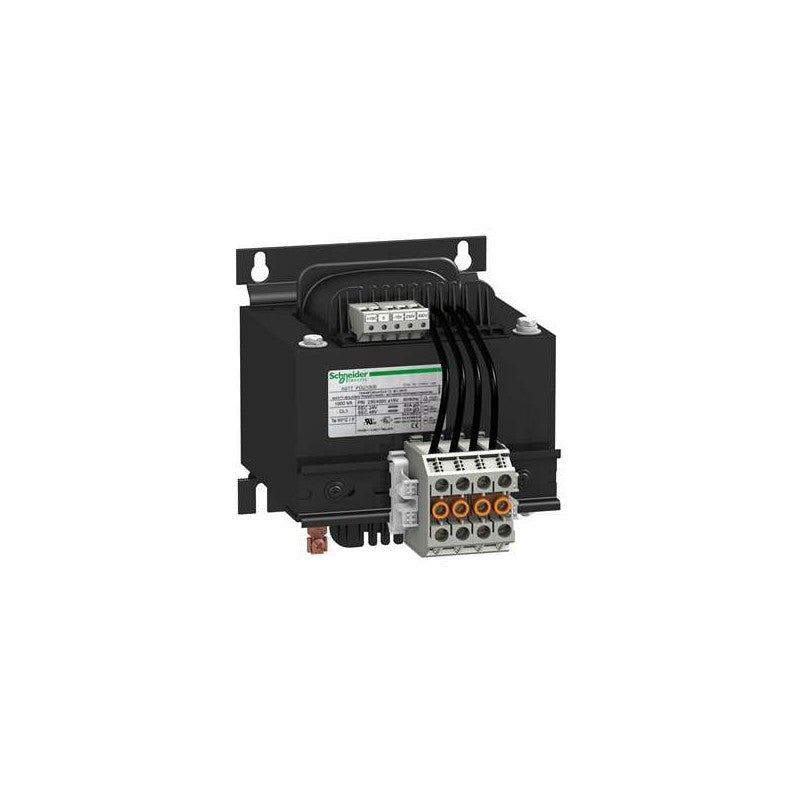

The Schneider Electric ABT7PDU250B is a voltage transformer designed for industrial power distribution and control systems. This unit is part of the ABT series, commonly integrated into automation panels and machinery requiring precise voltage conversion. It facilitates the transformation of primary voltages within the 230 to 400 VAC range down to a stable 24 VAC output.

Technical details

• Transformer Type: Voltage Transformer
• Primary Voltage Range: 230 VAC to 400 VAC
• Secondary Voltage Output: 24 VAC
• Apparent Power Rating: 2.5 kVA
• Series: ABT Series
• Configuration: Features two secondary windings, each providing 24 VAC.
• Cooling Method: Natural convection cooling is standard for this transformer type.
• Insulation Class: Verify specific insulation class against manufacturer datasheet for environmental suitability.

Applications & compatibility

This voltage transformer is suitable for a wide array of industrial automation applications, including control circuits for motor starters, solenoid valves, and instrumentation. It is commonly found in control panels for manufacturing equipment, material handling systems, and process control applications where a reliable 24 VAC supply is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ABT7PDU250B or contact our technical team for cross-reference assistance with compatible ABT series components.
