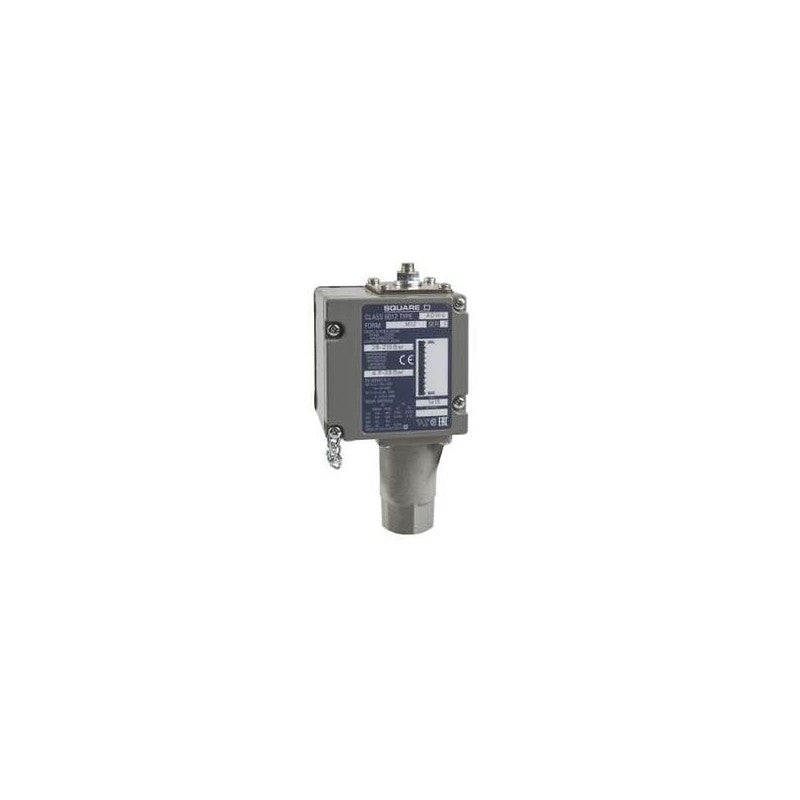

The Schneider Electric ACW8M12 is a pressure switch designed for industrial control systems, featuring an adjustable scale for precise pressure monitoring. This unit operates within a 12-bar pressure range and provides two distinct threshold settings, offering flexibility in system automation. It is equipped with a 1 Changeover (1CO) contact configuration, suitable for a variety of switching applications.

Technical details

• Series: ACW Series
• Maximum Pressure: 12 bar
• Adjustment Type: Adjustable scale with 2 thresholds
• Contact Configuration: 1 Changeover (1CO)
• Switching Function: Pressure-activated switching
• Enclosure Type: Typically designed for industrial environments; specific IP rating should be verified against manufacturer datasheet.
• Electrical Rating: Specific voltage and current ratings for the 1CO contact should be verified against the manufacturer's datasheet.
• Connection Type: Standard industrial pressure port and electrical terminals; specific thread size and terminal type should be verified against the manufacturer's datasheet.

Applications & compatibility

This pressure switch is commonly employed in applications requiring precise pressure regulation and control, such as pneumatic systems, hydraulic circuits, and process monitoring. It is suitable for integration into machine tools, packaging equipment, and general industrial automation setups where reliable pressure sensing is critical for safe and efficient operation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ACW8M12 or contact our technical team for cross-reference assistance with compatible Schneider Electric pressure control components.
