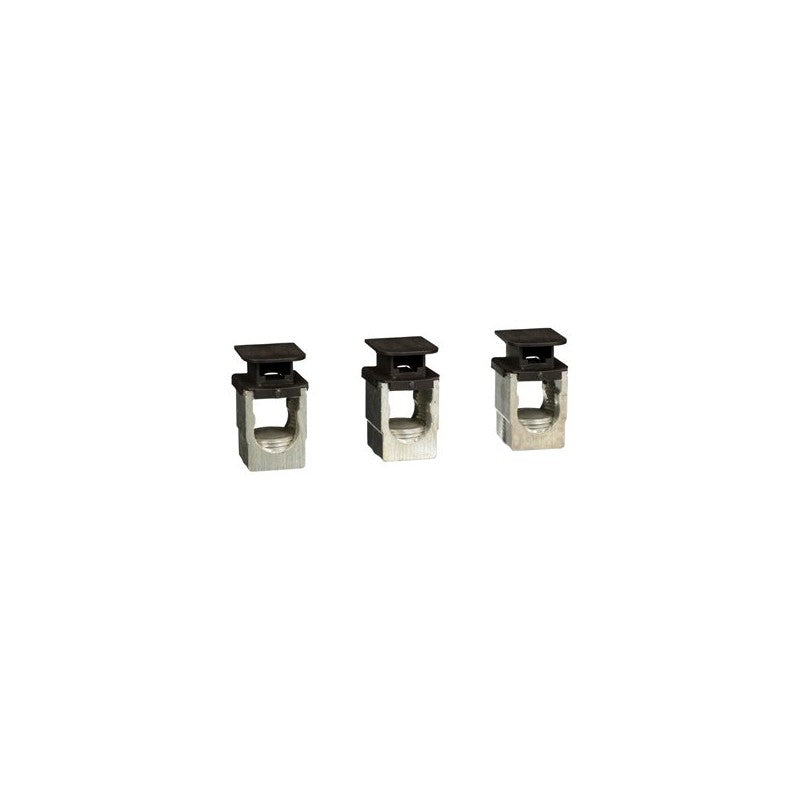

The AL250JD from Schneider Electric is a mechanical lug kit designed for circuit breaker applications. This accessory is part of the AL series, commonly utilized in industrial power distribution and motor control systems. The "250" in the part number typically indicates compatibility with circuit breakers rated up to 250 amps, and the "JD" designation often signifies a specific configuration or accessory type within the series.

Technical details

• Series: AL Series
• Product Type: Mechanical Lug Kit
• Kit Contents: Includes three (3) lugs.
• Compatible Circuit Breaker Amperage: Up to 250 Amps (indicated by part number "250").
• Connection Type: Mechanical lug termination for electrical conductors.
• Material: Typically copper or aluminum alloy for conductivity and durability (verify with manufacturer datasheet).
• Mounting: Designed for secure attachment to compatible Schneider Electric circuit breaker terminals.
• Intended Use: Facilitates the connection of power cables to circuit breakers.

Applications & compatibility

This AL250JD lug kit is essential for terminating power conductors on Schneider Electric circuit breakers within the AL series. It is commonly found in electrical panels, motor control centers, and power distribution units for applications such as manufacturing plants, commercial buildings, and infrastructure projects. Ensure compatibility with your specific AL series circuit breaker model by consulting the manufacturer's documentation.
