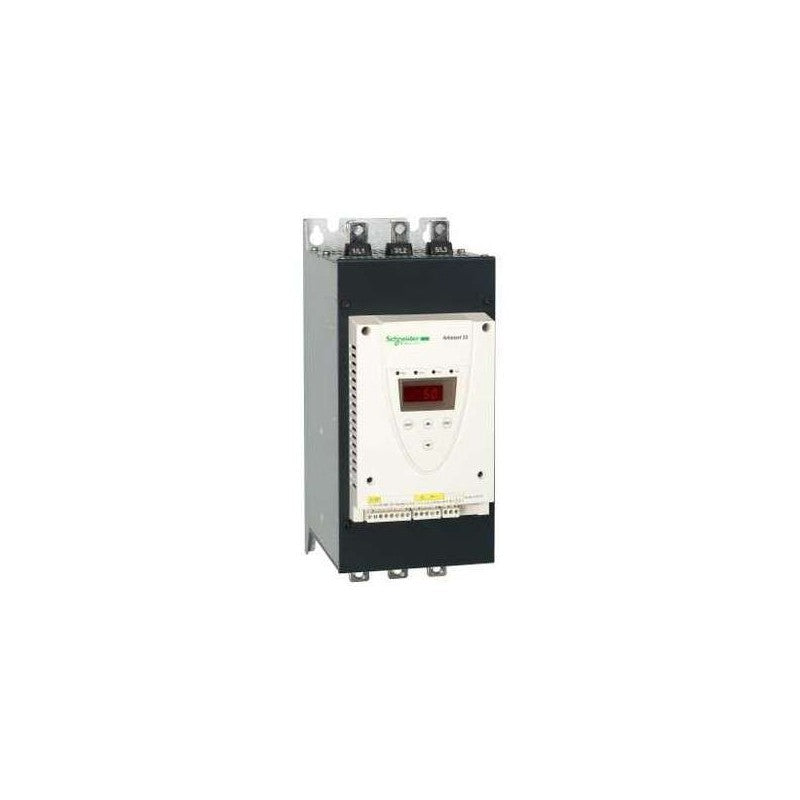

The Schneider Electric ATS22C11S6U is a soft starter from the ATS22 control series, designed for motor control applications. This unit operates with a control voltage of 110V and supports multiple power voltage configurations, including 208V, 230V, 460V, and 575V. It is engineered to manage motor starting currents and provide smooth acceleration for loads up to 100 horsepower.

Technical details

• Series: ATS22 Control
• Control Voltage: 110V AC
• Power Voltage Support: 208V AC, 230V AC, 460V AC, 575V AC
• Rated Motor Power (208V): 30 hp
• Rated Motor Power (230V): 40 hp
• Rated Motor Power (460V): 75 hp
• Rated Motor Power (575V): 100 hp
• Soft Starter Functionality: Provides controlled acceleration and deceleration for three-phase AC induction motors.

Applications & compatibility

This soft starter is suitable for a wide range of industrial applications requiring controlled motor starting, such as conveyor systems, pumps, fans, and compressors. It is commonly integrated into machinery found in manufacturing, material handling, and processing industries where smooth motor ramp-up is critical to prevent mechanical stress and power surges.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATS22C11S6U or contact our technical team for cross-reference assistance with compatible ATS22 series components.
