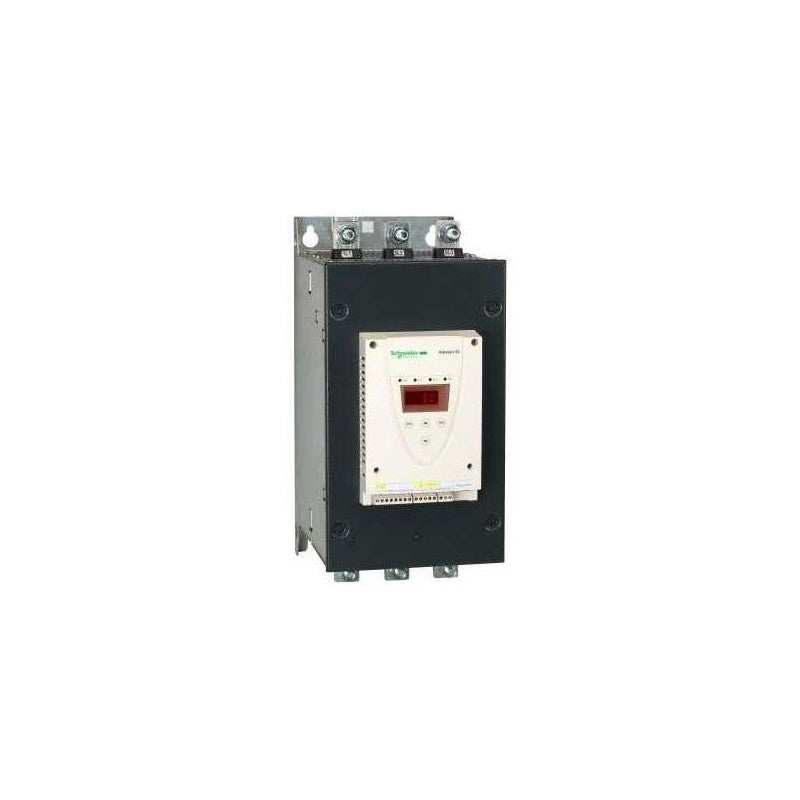

The Schneider Electric ATS22C21Q is a soft starter designed for motor control applications. As part of the ATS22 control series, this unit offers controlled acceleration and deceleration for electric motors. It is commonly integrated into systems requiring smooth power application to prevent mechanical stress and electrical surges during startup and shutdown.

Technical details

• Series: ATS22
• Control Voltage: 220V AC
• Power Rating (230V): 55 kW
• Power Rating (400-440V): 110 kW
• Soft Starter Functionality: Provides controlled acceleration and deceleration
• Motor Protection Features: Integrated overload protection
• Bypass Contactors: Internal bypass for full speed operation
• Mounting Type: DIN rail or panel mount

Applications & compatibility

This soft starter is suitable for a wide range of industrial applications including pumps, fans, conveyors, and compressors. It is designed to work with standard three-phase induction motors. The ATS22C21Q is an effective solution for reducing mechanical shock on driven equipment and minimizing inrush current on the electrical supply.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATS22C21Q or contact our technical team for cross-reference assistance with compatible ATS22 components.
