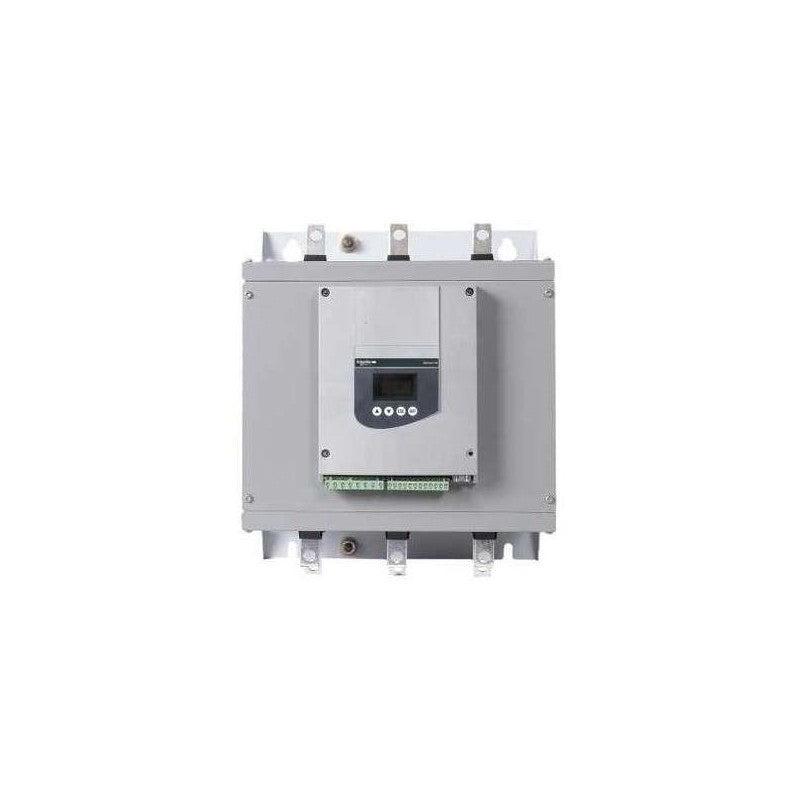

Schneider Electric's Altistart ATS48 series soft starter is engineered for controlled motor acceleration in demanding industrial environments. This unit, part of the robust ATS48 family, is designed to manage asynchronous motors up to 315kW (400HP) and handle a maximum line current of 302A. It is commonly employed in applications requiring smooth starts to reduce mechanical stress on equipment and electrical stress on the power supply.

Technical details

• Series: Altistart ATS48
• Motor Power Rating: 75 kW to 315 kW (100 HP to 400 HP)
• Rated Operational Current: 302 A
• Input Voltage Range: 208 V to 690 V AC
• Control Voltage: Typically 24 V AC/DC (verify with datasheet for specific model configuration)
• Soft Start Functionality: Provides controlled acceleration ramp for asynchronous motors
• Integrated Bypass: Features an internal bypass contactor for full speed operation, reducing heat dissipation
• Protection Features: Includes motor overload protection and thermal memory

Applications & compatibility

The ATS48C32Y is suitable for a wide range of heavy-duty applications where motor starting torque and current control are critical. This includes pump control systems, fan drives, conveyor systems, and compressors in industries such as water treatment, material handling, and general manufacturing. Its ability to manage high starting currents makes it ideal for systems with limited power supply capacity or where mechanical shock must be minimized.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATS48C32Y or contact our technical team for cross-reference assistance with compatible Altistart components.
