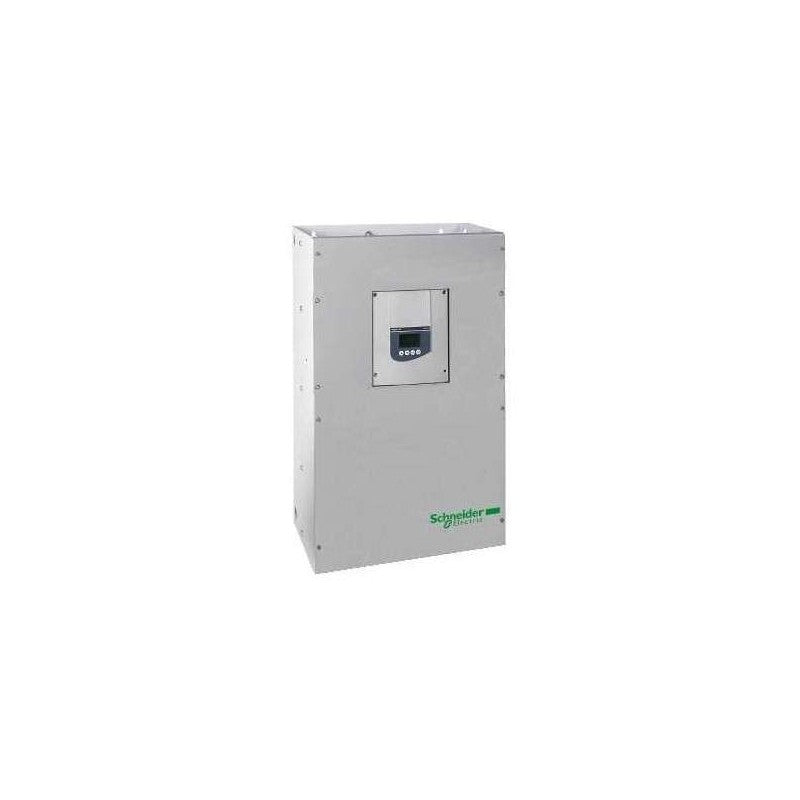

The Schneider Electric Altistart ATS48 series soft starter is engineered to provide controlled acceleration for asynchronous motors. This unit, identified by the part number ATS48C66Y, is designed for applications requiring smooth motor start-up and reduced mechanical stress. It is a key component in managing motor power and protecting equipment in demanding industrial environments.

Technical details

• Series: Altistart ATS48
• Motor Control Type: Soft Starter
• Rated Current: 590 A
• Voltage Range: 208 V to 690 V AC
• Motor Power Rating (Max): 160 kW at 230 V, 315 kW at 400 V, 630 kW at 690 V
• Control Voltage: 230 V AC
• Integrated Bypass: Yes
• Protection Functions: Motor overload, short circuit, phase loss, undervoltage, overvoltage, thermal protection
• Mounting: Floor or wall mount

Applications & compatibility

This soft starter is suitable for a wide range of heavy-duty motor applications, including pumps, fans, conveyors, and compressors. It is commonly integrated into systems found in the mining, material handling, water treatment, and general manufacturing industries. The ATS48 series is designed for compatibility with standard asynchronous motors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATS48C66Y or contact our technical team for cross-reference assistance with compatible Altistart components.
