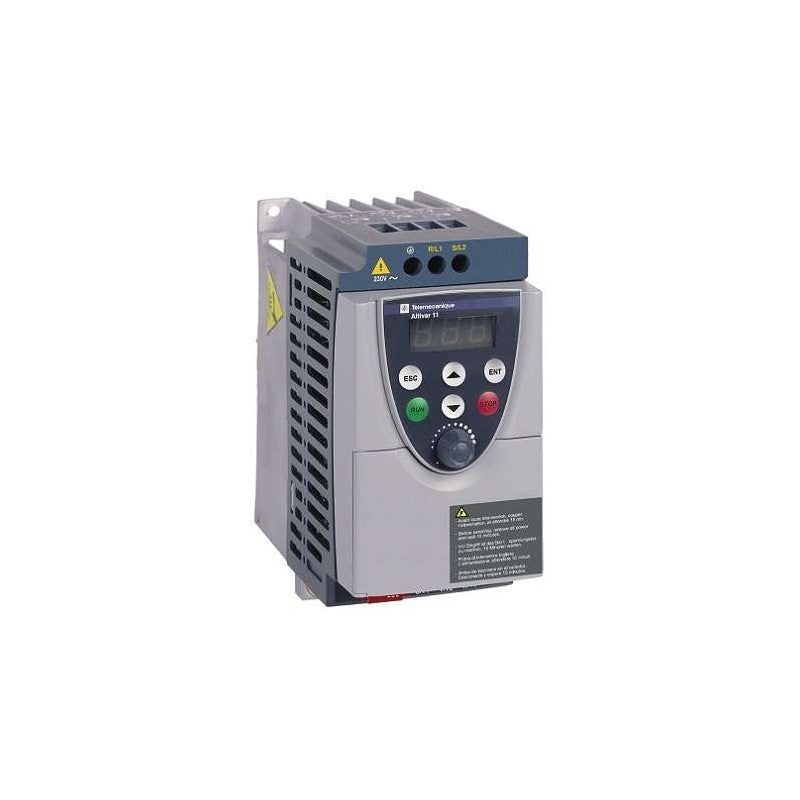

The Schneider Electric Altivar 11 (ATV11) variable speed drive is engineered for basic motor control applications. This unit, designated by the part number ATV11HU18M2A, is part of the ATV11 series and is designed to operate with a 230V single-phase power supply. It provides precise speed regulation for fractional horsepower motors commonly found in smaller machinery and automation tasks.

Technical details

• Series: Altivar 11 (ATV11)
• Power Rating: 0.75 kW (1 HP)
• Input Voltage: 230V AC, 1-phase
• Output Voltage: Configurable, typically matching input voltage
• Enclosure Rating: IP20 (Open chassis, protection against solid objects >12.5mm)
• Mounting Type: Panel mount
• Control Type: V/f control
• Frequency Range: 0 to 400 Hz

Applications & compatibility

This ATV11 drive is suitable for a wide range of applications requiring simple speed adjustment, including small fans, pumps, conveyors, and general machine control. It is designed for integration into standalone machines or small automation systems where a compact and cost-effective motor control solution is needed. Compatibility is typically with standard asynchronous motors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV11HU18M2A or contact our technical team for cross-reference assistance with compatible Altivar components.
