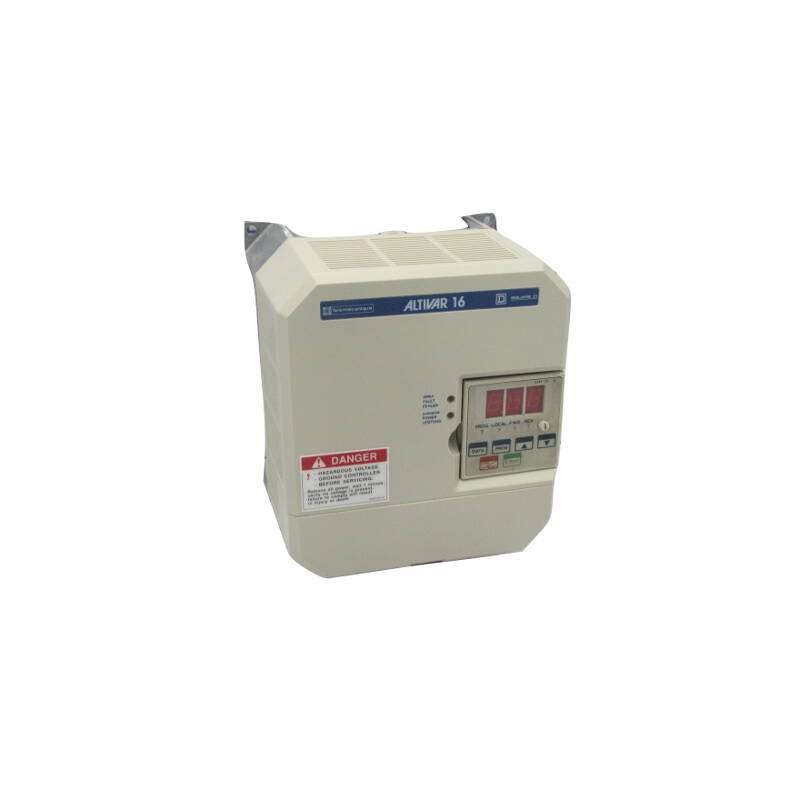

The Schneider Electric Altivar 16 (ATV16) series variable frequency drive (VFD) is engineered for precise motor control in single-phase to three-phase applications. This particular model, the ATV16U29M2, is designed to operate within a 208/240V voltage range, accommodating both 50Hz and 60Hz power frequencies. It is commonly integrated into machinery requiring variable speed operation, such as small pumps, fans, and conveyor systems.

Technical details

• Series: Altivar 16 (ATV16)
• Input Voltage: 208/240V AC
• Input Frequency: 50/60 Hz
• Phase Configuration: Single-phase input, Three-phase output
• Current Rating: 7.1 - 9 Amps (This range typically corresponds to the drive's continuous output current capability, with the specific value often dependent on motor load and ambient temperature. Buyers should consult the datasheet for precise motor matching.)
• Control Type: Scalar (V/f) control is a standard feature of the ATV16 series, providing basic speed regulation for many applications.
• Mounting: Panel mount configuration is typical for this series, facilitating integration into control cabinets.
• Protection Features: Integrated motor overload protection and drive fault diagnostics are standard.

Applications & compatibility

This Schneider Electric ATV16 VFD is well-suited for standalone machine applications and OEM equipment where variable speed control is beneficial. Common integration points include packaging machinery, small material handling systems, HVAC fan control, and general-purpose motor speed adjustment in manufacturing environments. Its compatibility is primarily with standard three-phase induction motors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the ATV16U29M2 or contact our technical team for cross-reference assistance with compatible Altivar components.
